主頁 > 知識庫 > Linux利用keepalived實現lvs的高可用性的操作方法

Linux利用keepalived實現lvs的高可用性的操作方法

lvs+keepalived是什么？

keepalived工作原理

keepalived是集群管理中保證集群高可用的一個服務軟件，其功能類似于heartbeat，用來防止單點故障。 keepalived是以VRRP協議為實現基礎的，VRRP全稱Virtual Router Redundancy Protocol，即虛擬路由冗余協議。虛擬路由冗余協議，可以認為是實現路由器高可用的協議，即將N臺提供相同功能的路由器組成一個路由器組，這個組里面有一個master和多個backup，master上面有一個對外提供服務的vip（該路由器所在局域網內其他機器的默認路由為該vip），master會發組播，當backup收不到vrrp包時就認為master宕掉了，這時就需要根據VRRP的優先級來選舉一個backup當master。這樣的話就可以保證路由器的高可用了。

LVS簡介

LVS是Linux Virtual Server的簡寫，意即Linux虛擬服務器，是一個虛擬的服務器集群系統。本項目在1998年5月由章文嵩博士成立，是中國國內最早出現的自由軟件項目之一。目前有三種IP負載均衡技術（VS/NAT、VS/TUN和VS/DR），十種調度算法。

本文重點給大家介紹Linux利用keepalived實現lvs的高可用性的操作方法，感興趣的朋友參考下吧。

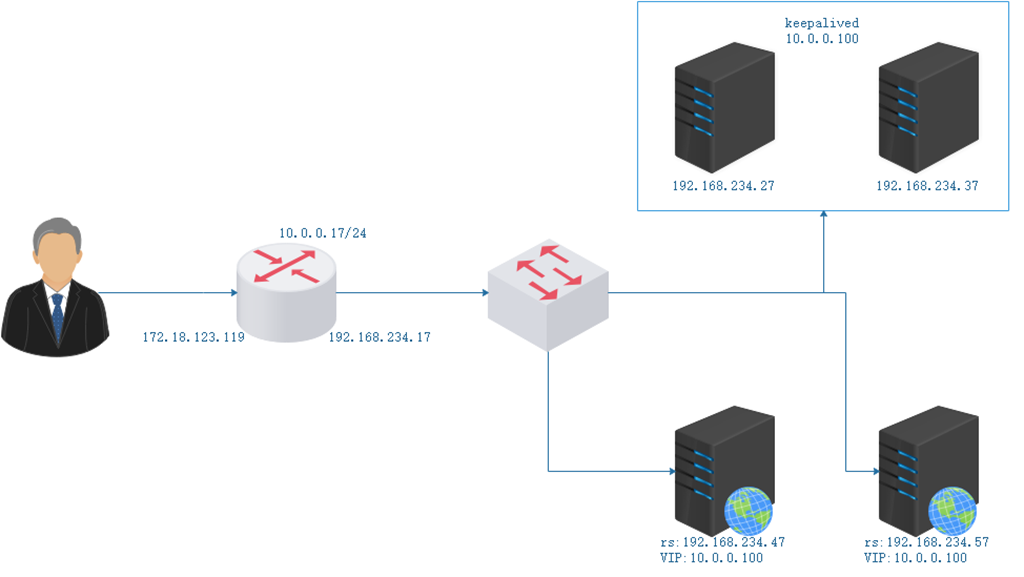

單主模型IPVS示例

配置keepalive

高可用的ipvs集群示例：修改keepalived配置文件

修改主機：192.168.234.27的keepalived配置文件

[root@234c27 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
root@localhost //接受郵件地址
}
notification_email_from keepalived@localhost //發送郵件地址
smtp_server 127.0.0.1 //發送郵件服務器IP
smtp_connect_timeout 30 //郵件連接超時時長
router_id kptwo //路由id
vrrp _mcast_group4 234.10.10.10 //指定vrrp協議的多播地址
}
vrrp_instance VI_1 { //vrrp協議的
state MASTER //lvs的MASTER服務器
interface ens37 //
virtual_router_id 50 //虛擬路由
priority 100 //權重為100.越大越先
advert_int 1 //發送組博包的間隔
authentication { //驗證
auth_type PASS //方式為pass( 明文)
auth_pass 1111 //密碼
}
virtual_ipaddress { //keepalived虛擬ip
10.0.0.100/24
}
}
virtual_server 10.0.0.100 80 {
 delay_loop 6 //檢查后端服務器的時間間隔
 lb_algo wrr //定義調度方法
 lb_kind DR //集群的類型
 #persistence_timeout 50 //持久連接時長
 protocol TCP //服務協議，僅支持TCP
 real_server 192.168.234.47 80 { //后端real_server服務器地址
  weight 1 //權重
  HTTP_GET { //應用層檢測
   url {
    path / //定義要監控的URL
    status_code 200 //判斷上述檢測機制為健康狀態的響應碼
   }
   connect_timeout 3 //連接請求的超時時長
   nb_get_retry 3 //重試次數
   delay_before_retry 3 //重試之前的延遲時長
  }
 }
 real_server 192.168.234.57 80 {
  weight 2
  HTTP_GET {
   url {
    path /
    status_code 200
   }
   connect_timeout 3
   nb_get_retry 3
   delay_before_retry 3
  }
 }
}

修改主機：192.168.234.37的keepalived配置文件

[root@234c37 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
 notification_email {
  root@localhost
 }
 notification_email_from keepalived@localhost
 smtp_server 127.0.0.1
 smtp_connect_timeout 30
 router_id kptwo
 vrrp _mcast_group4 234.10.10.10
}
vrrp_instance VI_1 {
 state BACKUP
 interface ens37
 virtual_router_id 50
 priority 80
 advert_int 1
 authentication {
  auth_type PASS
  auth_pass 1111
 }
 virtual_ipaddress {
  10.0.0.100/24
 }
}
virtual_server 10.0.0.100 80 {
 delay_loop 6
 lb_algo wrr
 lb_kind DR
 #persistence_timeout 50
 protocol TCP
 sorry_server 127.0.0.1:80
 real_server 192.168.234.47 80 {
  weight 1
  HTTP_GET {
   url {
    path /
    status_code 200
   }
   connect_timeout 3
   nb_get_retry 3
   delay_before_retry 3
  }
 }
 real_server 192.168.234.57 80 {
  weight 2
  HTTP_GET {
   url {
    path /
    status_code 200
   }
   connect_timeout 3
   nb_get_retry 3
   delay_before_retry 3
  }
 }
}

查看keepalived

[root@234c37 ~]# systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
 Loaded: loaded (/usr/lib/systemd/system/keepalived.service; disabled; vendor preset: disabled)
 Active: inactive (dead)
…………
[root@234c37 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
 -> RemoteAddress:Port   Forward Weight ActiveConn InActConn
//暫無ipvsadm

啟動服務

[root@234c27 keepalived]# systemctl start keepalived.service
[root@234c27 keepalived]# systemctl status keepalived.service
● keepalived.service - LVS and VRRP High Availability Monitor
 Loaded: loaded (/usr/lib/systemd/system/keepalived.service; disabled; vendor preset: disabled)
 Active: active (running) since Fri 2018-08-31 20:30:02 CST; 12s ago
 Process: 9657 ExecStart=/usr/sbin/keepalived $KEEPALIVED_OPTIONS (code=exited, status=0/SUCCESS)
 Main PID: 9658 (keepalived)
………………
[root@234c27 keepalived]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
 -> RemoteAddress:Port   Forward Weight ActiveConn InActConn
TCP 10.0.0.100:80 wrr
 -> 192.168.234.47:80   Route 1  0   0
 -> 192.168.234.57:80   Route 2  0   0
//啟動服務lvs vs已配置好

后端real_server準備

增加ip在網卡上修改限制arp通告及應答級別 rs1 rs2都做，網關并指向路由

ip a a 10.0.0.100/32 dev ens37
echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce
echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce
route add default gw 192.168.234.17

安裝httpd服務 寫好網頁文件

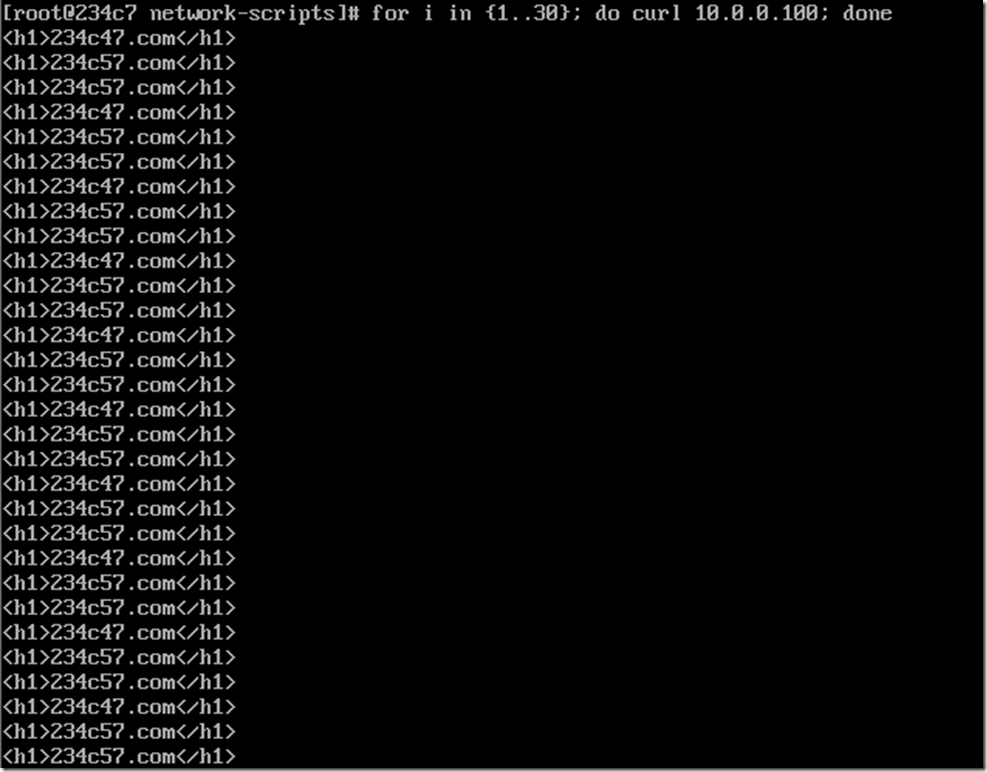

啟動服務

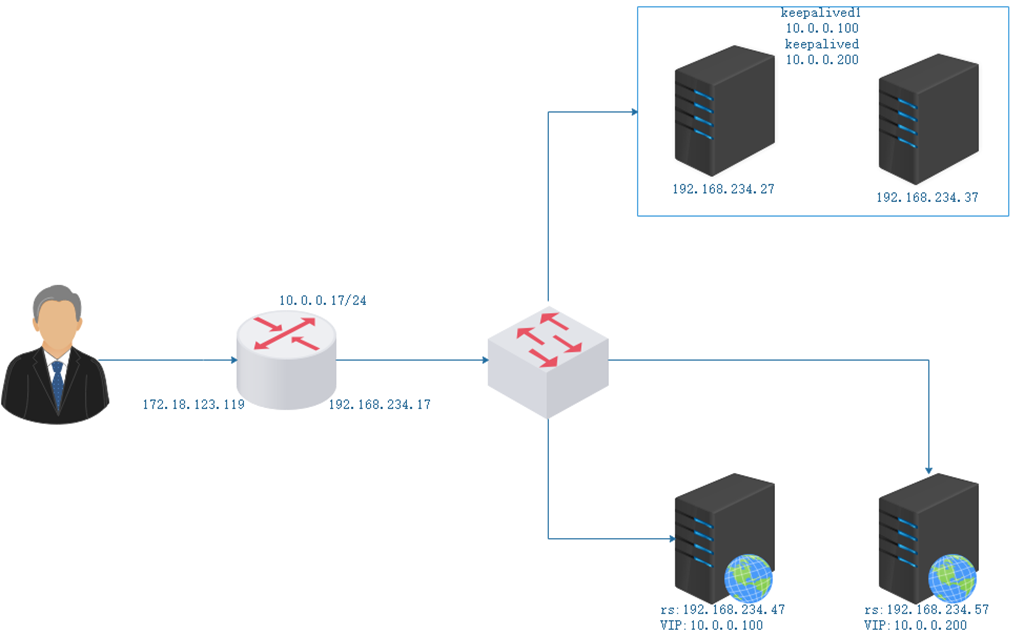

多主模型IPVS示例

配置keepalive

高可用的ipvs集群示例：修改keepalived配置文件

修改主機：192.168.234.27的keepalived配置文件

[root@234c27 keepalived]# vim /etc/keepalived/keepalived.conf
global_defs {
  notification_email {
   root@localhost
  }
  notification_email_from keepalived@localhost
  smtp_server 127.0.0.1
  smtp_connect_timeout 30
  router_id kpone
  vrrp _mcast_group4 234.10.10.10
}
vrrp_instance VI_1 {
  state MASTER
  interface ens37
  virtual_router_id 50
  priority 100
  advert_int 1
  authentication {
    auth_type PASS
    auth_pass 1111
  }
  virtual_ipaddress {
    10.0.0.100/24
  }
}
vrrp_instance VI_2 {
  state BACKUP
  interface ens37
  virtual_router_id 51
  priority 80
  advert_int 1
  authentication {
    auth_type PASS
    auth_pass 2222
  }
  virtual_ipaddress {
    10.0.0.200/24
  }
}
virtual_server 10.0.0.100 80 {
  delay_loop 6
  lb_algo wrr
  lb_kind DR
  #persistence_timeout 50
  protocol TCP
  #sorry_server 127.0.0.1:80
  real_server 192.168.234.47 80 {
    weight 1
    HTTP_GET {
      url {
       path /
       status_code 200
      }
      connect_timeout 3
      nb_get_retry 3
      delay_before_retry 3
    }
  }
}
virtual_server 10.0.0.200 80 {
  delay_loop 6
  lb_algo wrr
  lb_kind DR
  #persistence_timeout 50
  protocol TCP
  #sorry_server 127.0.0.1:80
  real_server 192.168.234.57 80 {
    weight 1
    HTTP_GET {
      url {
       path /
       status_code 200
      }
      connect_timeout 3
      nb_get_retry 3
      delay_before_retry 3
    }
  }
}

修改主機：192.168.234.37的keepalived配置文件

[root@234c37 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
  notification_email {
   root@localhost
  }
  notification_email_from keepalived@localhost
  smtp_server 127.0.0.1
  smtp_connect_timeout 30
  router_id kptwo
  vrrp _mcast_group4 234.10.10.10
}
vrrp_instance VI_1 {
  state BACKUP
  interface ens37
  virtual_router_id 50
  priority 80
  advert_int 1
  authentication {
    auth_type PASS
    auth_pass 1111
  }
  virtual_ipaddress {
    10.0.0.100/24
  }
}
vrrp_instance VI_2 {
  state MASTER
  interface ens37
  virtual_router_id 51
  priority 100
  advert_int 1
  authentication {
    auth_type PASS
    auth_pass 2222
  }
  virtual_ipaddress {
    10.0.0.200/24
  }
}
virtual_server 10.0.0.100 80 {
  delay_loop 6
  lb_algo wrr
  lb_kind DR
  #persistence_timeout 50
  protocol TCP
  #sorry_server 127.0.0.1:80
  real_server 192.168.234.47 80 {
    weight 1
    HTTP_GET {
      url {
       path /
       status_code 200
      }
      connect_timeout 3
      nb_get_retry 3
      delay_before_retry 3
    }
  }
}
virtual_server 10.0.0.200 80 {
  delay_loop 6
  lb_algo wrr
  lb_kind DR
  #persistence_timeout 50
  protocol TCP
  #sorry_server 127.0.0.1:80
  real_server 192.168.234.57 80 {
    weight 1
    HTTP_GET {
      url {
       path /
       status_code 200
      }
      connect_timeout 3
      nb_get_retry 3
      delay_before_retry 3
    }
  }
}

讓10.0.0.100的ip優先分配至192.168.234.47 192.168.234.57備用

讓10.0.0.200的ip優先分配至192.168.234.57 192.168.234.47備用

后端real_server準備

修改192.168.234.57的vip為10.0.0.200/32

  [root@234c27 keepalived]# ipvsadm -Ln
  IP Virtual Server version 1.2.1 (size=4096)
  Prot LocalAddress:Port Scheduler Flags
   -> RemoteAddress:Port      Forward Weight ActiveConn InActConn
  TCP 10.0.0.100:80 wrr
   -> 192.168.234.47:80      Route  1   0     0
  TCP 10.0.0.200:80 wrr
  -> 192.168.234.57:80      Route  1   0     0

現在宕掉一個lvs

  [root@234c27 keepalived]# systemctl stop keepalived.service
  [root@234c27 keepalived]# ipvsadm -Ln
  IP Virtual Server version 1.2.1 (size=4096)
  Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port      Forward Weight ActiveConn InActConn

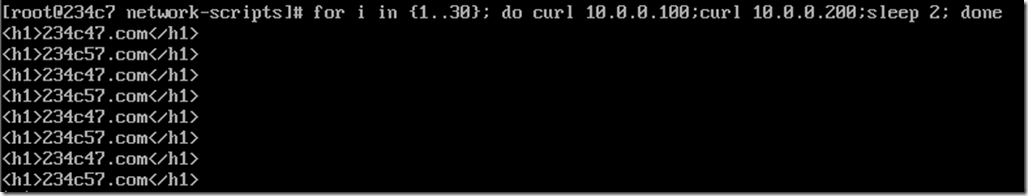

依然提供服務

 [root@234c37 ~]# ipvsadm -Ln
 IP Virtual Server version 1.2.1 (size=4096)
  Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port      Forward Weight ActiveConn InActConn
  TCP 10.0.0.100:80 wrr
   -> 192.168.234.47:80      Route  1   0     21
  TCP 10.0.0.200:80 wrr
   -> 192.168.234.57:80      Route  1   0     39

后一個實現基于前一個的基礎上修改來的

假設要實現sorry_server

1.把rs服務都停掉。然后在lvs上安裝apache或者nginx服務

2.將keepalived配置文件中的

virtual_server 10.0.0.200 80 {
  delay_loop 6
  lb_algo wrr
  lb_kind DR
  #persistence_timeout 50
  protocol TCP
  #sorry_server 127.0.0.1:80 //這一行來修改 寫出服務出錯之后的頁面
  real_server 192.168.234.57 80 {
    weight 1
    HTTP_GET {
      url {
       path /
       status_code 200
      }
      connect_timeout 3
      nb_get_retry 3
      delay_before_retry 3
    }
  }
}
