概述

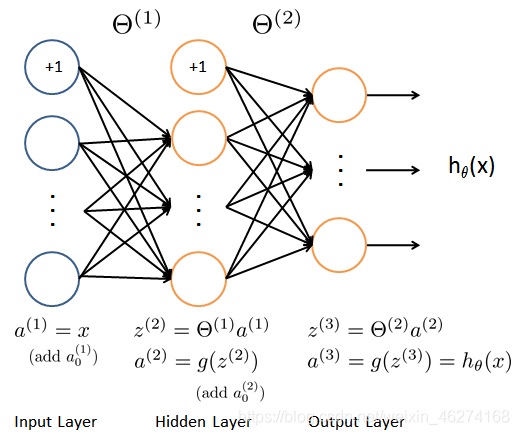

前向傳播 (Forward propagation) 是將上一層輸出作為下一層的輸入, 并計算下一層的輸出, 一直到運算到輸出層為止.
會用到的函數
張量最小值
```reduce_min``函數可以幫助我們計算一個張量各個維度上元素的最小值.
格式:
tf.math.reduce_min(
input_tensor, axis=None, keepdims=False, name=None
)
參數:
- input_tensor: 傳入的張量
- axis: 維度, 默認計算所有維度
- keepdims: 如果為真保留維度, 默認為 False
- name: 數據名稱
張量最大值
```reduce_max``函數可以幫助我們計算一個張量各個維度上元素的最大值.
格式:
tf.math.reduce_max(
input_tensor, axis=None, keepdims=False, name=None
)
參數:
- input_tensor: 傳入的張量
- axis: 維度, 默認計算所有維度
- keepdims: 如果為真保留維度, 默認為 False
- name: 數據名稱
數據集分批
from_tensor_slices可以幫助我們切分傳入 Tensor 的第一個維度. 得到的每個切片都是一個樣本數據.
格式:
@staticmethod
from_tensor_slices(
tensors
)
迭代
我們可以調用iter函數來生成迭代器.
格式:
參數:
-object: 支持迭代的集合對象
- sentinel: 如果傳遞了第二個參數, 則參數 object 必須是一個可調用的對象 (如, 函數). 此時, iter 創建了一個迭代器對象, 每次調用這個迭代器對象的
__next__()方法時, 都會調用 object
例子:
list = [1, 2, 3]
i = iter(list)
print(next(i))
print(next(i))
print(next(i))
輸出結果:
1
2
3

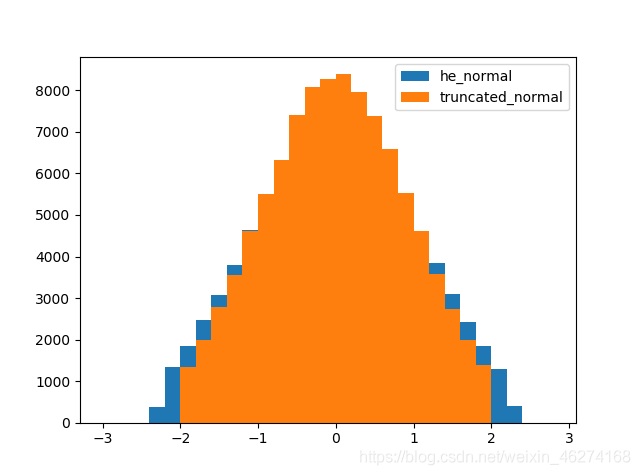

截?cái)嗾龖B(tài)分布
truncated_normal可以幫助我們生成一個截?cái)嗟恼龖B(tài)分布. 生成的正態分布值會在兩倍的標準差的范圍之內.
格式:
tf.random.truncated_normal(
shape, mean=0.0, stddev=1.0, dtype=tf.dtypes.float32, seed=None, name=None
)
參數:
- shape: 張量的形狀
- mean: 正態分布的均值, 默認 0.0
- stddev: 正態分布的標準差, 默認為 1.0
- dtype: 數據類型, 默認為 float32
- seed: 隨機數種子
- name: 數據名稱

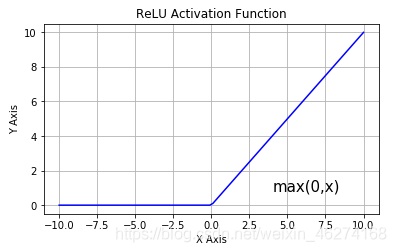

relu 激活函數
激活函數有 sigmoid, maxout, relu 等等函數. 通過激活函數我們可以使得各個層之間達成非線性關系.
激活函數可以幫助我們提高模型健壯性, 提高非線性表達能力, 緩解梯度消失問題.
one_hot
tf.one_hot函數是講 input 準換為 one_hot 類型數據輸出. 相當于將多個數值聯合放在一起作為多個相同類型的向量.
格式:
tf.one_hot(
indices, depth, on_value=None, off_value=None, axis=None, dtype=None, name=None
)
參數:
- indices: 索引的張量
- depth: 指定獨熱編碼維度的標量
- on_value: 索引 indices[j] = i 位置處填充的標量，默認為 1
- off_value: 索引 indices[j] != i 所有位置處填充的標量, 默認為 0
- axis: 填充的軸, 默認為 -1 (最里面的新軸)
- dtype: 輸出張量的數據格式
- name：數據名稱
assign_sub
assign_sub可以幫助我們實現張量自減.
格式:
tf.compat.v1.assign_sub(
ref, value, use_locking=None, name=None
)
參數:
- ref: 多重張量
- value: 張量
- use_locking: 鎖
- name: 數據名稱
準備工作
import tensorflow as tf
# 定義超參數
batch_size = 256 # 一次訓練的樣本數目
learning_rate = 0.001 # 學習率
iteration_num = 20 # 迭代次數
# 讀取mnist數據集
(x, y), _ = tf.keras.datasets.mnist.load_data() # 讀取訓練集的特征值和目標值
print(x[:5]) # 調試輸出前5個圖
print(y[:5]) # 調試輸出前5個目標值數字
print(x.shape) # (60000, 28, 28) 單通道
print(y.shape) # (60000,)
# 轉換成常量tensor
x = tf.convert_to_tensor(x, dtype=tf.float32) / 255 # 轉換為0~1的形式
y = tf.convert_to_tensor(y, dtype=tf.int32) # 轉換為整數形式
# 調試輸出范圍
print(tf.reduce_min(x), tf.reduce_max(x)) # 0~1
print(tf.reduce_min(y), tf.reduce_max(y)) # 0~9
# 分割數據集
train_db = tf.data.Dataset.from_tensor_slices((x, y)).batch(batch_size) # 256為一個batch
train_iter = iter(train_db) # 生成迭代對象
# 定義權重和bias [256, 784] => [256, 256] => [256, 128] => [128, 10]
w1 = tf.Variable(tf.random.truncated_normal([784, 256], stddev=0.1)) # 標準差為0.1的截?cái)嗾龖B(tài)分布
b1 = tf.Variable(tf.zeros([256])) # 初始化為0
w2 = tf.Variable(tf.random.truncated_normal([256, 128], stddev=0.1)) # 標準差為0.1的截?cái)嗾龖B(tài)分布
b2 = tf.Variable(tf.zeros([128])) # 初始化為0
w3 = tf.Variable(tf.random.truncated_normal([128, 10], stddev=0.1)) # 標準差為0.1的截?cái)嗾龖B(tài)分布
b3 = tf.Variable(tf.zeros([10])) # 初始化為0
輸出結果:
[[[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
...
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]]
[[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
...
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]]
[[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
...
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]]
[[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
...
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]]
[[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
...
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]
[0 0 0 ... 0 0 0]]]
[5 0 4 1 9]
(60000, 28, 28)
(60000,)
tf.Tensor(0.0, shape=(), dtype=float32) tf.Tensor(1.0, shape=(), dtype=float32)
tf.Tensor(0, shape=(), dtype=int32) tf.Tensor(9, shape=(), dtype=int32)
train 函數
def train(epoch): # 訓練
for step, (x, y) in enumerate(train_db): # 每一批樣本遍歷
# 把x平鋪 [256, 28, 28] => [256, 784]
x = tf.reshape(x, [-1, 784])
with tf.GradientTape() as tape: # 自動求解
# 第一個隱層 [256, 784] => [256, 256]
# [256, 784]@[784, 256] + [256] => [256, 256] + [256] => [256, 256] + [256, 256] (廣播機制)
h1 = x @ w1 + tf.broadcast_to(b1, [x.shape[0], 256])
h1 = tf.nn.relu(h1) # relu激活
# 第二個隱層 [256, 256] => [256, 128]
h2 = h1 @ w2 + b2
h2 = tf.nn.relu(h2) # relu激活
# 輸出層 [256, 128] => [128, 10]
out = h2 @ w3 + b3
# 計算損失MSE(Mean Square Error)
y_onehot = tf.one_hot(y, depth=10) # 轉換成one_hot編碼
loss = tf.square(y_onehot - out) # 計算總誤差
loss = tf.reduce_mean(loss) # 計算平均誤差MSE
# 計算梯度
grads = tape.gradient(loss, [w1, b1, w2, b2, w3, b3])
# 更新權重
w1.assign_sub(learning_rate * grads[0]) # 自減梯度*學習率
b1.assign_sub(learning_rate * grads[1]) # 自減梯度*學習率
w2.assign_sub(learning_rate * grads[2]) # 自減梯度*學習率
b2.assign_sub(learning_rate * grads[3]) # 自減梯度*學習率
w3.assign_sub(learning_rate * grads[4]) # 自減梯度*學習率
b3.assign_sub(learning_rate * grads[5]) # 自減梯度*學習率
if step % 100 == 0: # 每運行100個批次, 輸出一次
print("epoch:", epoch, "step:", step, "loss:", float(loss))
run 函數
def run():
for i in range(iteration_num): # 迭代20次
train(i)
完整代碼
import tensorflow as tf
# 定義超參數
batch_size = 256 # 一次訓練的樣本數目
learning_rate = 0.001 # 學習率
iteration_num = 20 # 迭代次數
# 讀取mnist數據集
(x, y), _ = tf.keras.datasets.mnist.load_data() # 讀取訓練集的特征值和目標值
print(x[:5]) # 調試輸出前5個圖
print(y[:5]) # 調試輸出前5個目標值數字
print(x.shape) # (60000, 28, 28) 單通道
print(y.shape) # (60000,)
# 轉換成常量tensor
x = tf.convert_to_tensor(x, dtype=tf.float32) / 255 # 轉換為0~1的形式
y = tf.convert_to_tensor(y, dtype=tf.int32) # 轉換為整數形式
# 調試輸出范圍
print(tf.reduce_min(x), tf.reduce_max(x)) # 0~1
print(tf.reduce_min(y), tf.reduce_max(y)) # 0~9
# 分割數據集
train_db = tf.data.Dataset.from_tensor_slices((x, y)).batch(batch_size) # 256為一個batch
train_iter = iter(train_db) # 生成迭代對象
# 定義權重和bias [256, 784] => [256, 256] => [256, 128] => [128, 10]
w1 = tf.Variable(tf.random.truncated_normal([784, 256], stddev=0.1)) # 標準差為0.1的截?cái)嗾龖B(tài)分布
b1 = tf.Variable(tf.zeros([256])) # 初始化為0
w2 = tf.Variable(tf.random.truncated_normal([256, 128], stddev=0.1)) # 標準差為0.1的截?cái)嗾龖B(tài)分布
b2 = tf.Variable(tf.zeros([128])) # 初始化為0
w3 = tf.Variable(tf.random.truncated_normal([128, 10], stddev=0.1)) # 標準差為0.1的截?cái)嗾龖B(tài)分布
b3 = tf.Variable(tf.zeros([10])) # 初始化為0
def train(epoch): # 訓練
for step, (x, y) in enumerate(train_db): # 每一批樣本遍歷
# 把x平鋪 [256, 28, 28] => [256, 784]
x = tf.reshape(x, [-1, 784])
with tf.GradientTape() as tape: # 自動求解
# 第一個隱層 [256, 784] => [256, 256]
# [256, 784]@[784, 256] + [256] => [256, 256] + [256] => [256, 256] + [256, 256] (廣播機制)
h1 = x @ w1 + tf.broadcast_to(b1, [x.shape[0], 256])
h1 = tf.nn.relu(h1) # relu激活
# 第二個隱層 [256, 256] => [256, 128]
h2 = h1 @ w2 + b2
h2 = tf.nn.relu(h2) # relu激活
# 輸出層 [256, 128] => [128, 10]
out = h2 @ w3 + b3
# 計算損失MSE(Mean Square Error)
y_onehot = tf.one_hot(y, depth=10) # 轉換成one_hot編碼
loss = tf.square(y_onehot - out) # 計算總誤差
loss = tf.reduce_mean(loss) # 計算平均誤差MSE
# 計算梯度
grads = tape.gradient(loss, [w1, b1, w2, b2, w3, b3])
# 更新權重
w1.assign_sub(learning_rate * grads[0]) # 自減梯度*學習率
b1.assign_sub(learning_rate * grads[1]) # 自減梯度*學習率
w2.assign_sub(learning_rate * grads[2]) # 自減梯度*學習率
b2.assign_sub(learning_rate * grads[3]) # 自減梯度*學習率
w3.assign_sub(learning_rate * grads[4]) # 自減梯度*學習率
b3.assign_sub(learning_rate * grads[5]) # 自減梯度*學習率
if step % 100 == 0: # 每運行100個批次, 輸出一次
print("epoch:", epoch, "step:", step, "loss:", float(loss))
def run():
for i in range(iteration_num): # 迭代20次
train(i)
if __name__ == "__main__":
run()
輸出結果:
epoch: 0 step: 0 loss: 0.5439826250076294
epoch: 0 step: 100 loss: 0.2263326346874237
epoch: 0 step: 200 loss: 0.19458135962486267
epoch: 1 step: 0 loss: 0.1788959801197052
epoch: 1 step: 100 loss: 0.15782299637794495
epoch: 1 step: 200 loss: 0.1580992043018341
epoch: 2 step: 0 loss: 0.15085121989250183
epoch: 2 step: 100 loss: 0.1432340145111084
epoch: 2 step: 200 loss: 0.14373672008514404
epoch: 3 step: 0 loss: 0.13810500502586365
epoch: 3 step: 100 loss: 0.13337770104408264
epoch: 3 step: 200 loss: 0.1334681361913681
epoch: 4 step: 0 loss: 0.12887853384017944
epoch: 4 step: 100 loss: 0.12551936507225037
epoch: 4 step: 200 loss: 0.125375896692276
epoch: 5 step: 0 loss: 0.12160968780517578
epoch: 5 step: 100 loss: 0.1190723180770874
epoch: 5 step: 200 loss: 0.11880680173635483
epoch: 6 step: 0 loss: 0.11563797295093536
epoch: 6 step: 100 loss: 0.11367204040288925
epoch: 6 step: 200 loss: 0.11331651359796524
epoch: 7 step: 0 loss: 0.11063456535339355
epoch: 7 step: 100 loss: 0.10906648635864258
epoch: 7 step: 200 loss: 0.10866570472717285
epoch: 8 step: 0 loss: 0.10636782646179199
epoch: 8 step: 100 loss: 0.10510052740573883
epoch: 8 step: 200 loss: 0.10468046367168427
epoch: 9 step: 0 loss: 0.10268573462963104
epoch: 9 step: 100 loss: 0.10163718461990356
epoch: 9 step: 200 loss: 0.10121693462133408
epoch: 10 step: 0 loss: 0.09949333965778351
epoch: 10 step: 100 loss: 0.09859145432710648
epoch: 10 step: 200 loss: 0.09819269925355911
epoch: 11 step: 0 loss: 0.0966767817735672
epoch: 11 step: 100 loss: 0.09586615860462189
epoch: 11 step: 200 loss: 0.09550992399454117
epoch: 12 step: 0 loss: 0.09417577087879181
epoch: 12 step: 100 loss: 0.09341947734355927
epoch: 12 step: 200 loss: 0.09310202300548553
epoch: 13 step: 0 loss: 0.09193204343318939
epoch: 13 step: 100 loss: 0.09122277796268463
epoch: 13 step: 200 loss: 0.09092779457569122
epoch: 14 step: 0 loss: 0.0899026170372963
epoch: 14 step: 100 loss: 0.08923697471618652
epoch: 14 step: 200 loss: 0.08895798027515411
epoch: 15 step: 0 loss: 0.08804921805858612
epoch: 15 step: 100 loss: 0.08742769062519073
epoch: 15 step: 200 loss: 0.0871589332818985
epoch: 16 step: 0 loss: 0.08635203540325165
epoch: 16 step: 100 loss: 0.0857706069946289
epoch: 16 step: 200 loss: 0.0855005756020546
epoch: 17 step: 0 loss: 0.08479145169258118
epoch: 17 step: 100 loss: 0.08423925191164017
epoch: 17 step: 200 loss: 0.08396687358617783
epoch: 18 step: 0 loss: 0.08334997296333313
epoch: 18 step: 100 loss: 0.08281457424163818
epoch: 18 step: 200 loss: 0.08254452794790268
epoch: 19 step: 0 loss: 0.08201286941766739
epoch: 19 step: 100 loss: 0.08149122446775436
epoch: 19 step: 200 loss: 0.08122102916240692
到此這篇關于詳解TensorFlow2實現前向傳播的文章就介紹到這了,更多相關TensorFlow2前向傳播內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
您可能感興趣的文章:- 手把手教你使用TensorFlow2實現RNN
- tensorflow2.0實現復雜神經網絡(多輸入多輸出nn，Resnet)
- windows系統Tensorflow2.x簡單安裝記錄(圖文)
- TensorFlow2基本操作之合并分割與統計
- Python強化練習之Tensorflow2 opp算法實現月球登陸器
