一、基礎Spring-boot快速啟動
1.1 快速啟動 pom.xml加入如下依賴
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.5.RELEASE</version>
</parent>
<properties>
<java.version>1.8</java.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<finalName>spring-docker</finalName>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
Spring-boot啟動類
@SpringBootApplication
public class DockerApplication {
public static void main(String[] args) {
SpringApplication.run(DockerApplication.class, args);
}
}
測試API
@RestController
public class DockerStarterApi {
@GetMapping("/api/docker/hello")
public String hello() {
return "hello docker";
}
}
配置啟動配置文件 application.yml
server:
port: 9090 # 為了展示效果, 這里改了默認端口8080
檢查Spring啟動
. ____ _ __ _ _
/\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
\\/ ___)| |_)| | | | | || (_| | ) ) ) )
' |____| .__|_| |_|_| |_\__, | / / / /
=========|_|==============|___/=/_/_/_/
:: Spring Boot :: (v2.0.2.RELEASE)
...
2018-12-17 17:26:13.385 INFO 48740 --- [ main] o.s.j.e.a.AnnotationMBeanExporter : Registering beans for JMX exposure on startup
2018-12-17 17:26:13.448 INFO 48740 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 9090 (http) with context path ''
2018-12-17 17:26:13.453 INFO 48740 --- [ main] pers.study.docker.DockerApplication : Started DockerApplication in 1.982 seconds (JVM running for 2.602)
檢查API是否生效
$ curl -XGET 'http://localhost:9090/api/docker/hello'
hello docker
瀏覽器檢查
http://localhost:9090/api/docker/hello
1.2 打包啟動
項目打包
完成上面步驟之后，執行打包命令：
$ mvn clean -U -Dmaven.test.skip compile package
因為上面的pom文件里面定義了 finalName ，所以在這里會看到編譯打包之后 target 目錄下會生成 spring-docker.jar
<finalName>spring-docker</finalName>
測試運行
$ java -jar target/spring-docker.jar
不出意外(有問題留言~)運行結果同上并檢查API是否生效即可.
二、Docker快速安裝
接下來開始準備Docker
安裝
官網下載安裝
檢查安裝、查看幫助
$ docker --version
Docker version 18.06.0-ce, build 0ffa825
$ docker --help
Usage: docker [OPTIONS] COMMAND
A self-sufficient runtime for containers
...
鏡像加速
中國官方鏡像加速
三、配置Spring-boot + Docker
pom.xml 添加docker plugin
<properties>
<docker.image.prefix>springboot</docker.image.prefix>
</properties>
<build>
<plugins>
<!-- Docker maven plugin -->
<plugin>
<groupId>com.spotify</groupId>
<artifactId>docker-maven-plugin</artifactId>
<version>1.0.0</version>
<configuration>
<imageName>${docker.image.prefix}/${project.build.finalName}</imageName>
<dockerDirectory>src/main/docker</dockerDirectory>
<resources>
<resource>
<targetPath>/</targetPath>
<directory>${project.build.directory}</directory>
<include>${project.build.finalName}.jar</include>
</resource>
</resources>
</configuration>
</plugin>
</plugins>
</build>
創建 Dockerfile 文件
根據上面 pom.xml 文件配置 <dockerDirectory>src/main/docker</dockerDirectory> ，這里配置了docker配置文件的目錄，所以需要再 src/main 下面創建docker文件夾，同時創建 Dockerfile 文件。

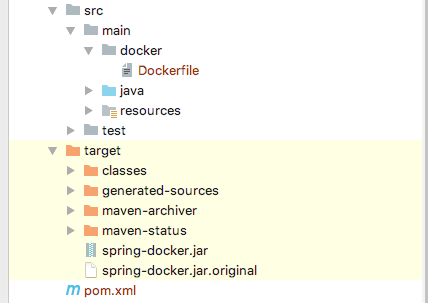

目錄機構如圖：
編輯 Dockerfile
FROM openjdk:8-jdk-alpine
VOLUME /tmp
ADD spring-docker.jar app.jar
ENTRYPOINT ["java","-Djava.security.egd=file:/dev/./urandom","-jar","/app.jar"]
FROM 表示以Java8為基礎鏡像
VOLUME 表示掛載目錄
ADD 拷貝打包文件并重命名為 app.jar
ENTRYPOINT 根據下面的官方文檔解釋大致是為了縮短tomcat啟動時間而添加的一個系統屬性。
We added a VOLUME pointing to /tmp because that is where a Spring Boot application creates working directories for Tomcat by default. The effect is to create a temporary file on your host under /var/lib/docker and link it to the container under /tmp . This step is optional for the simple app that we wrote here but can be necessary for other Spring Boot applications if they need to actually write in the filesystem.
To reduce Tomcat startup time we added a system property pointing to "/dev/urandom" as a source of entropy. This is not necessary with more recent versions of Spring Boot, if you use the "standard" version of Tomcat (or any other web server).
配置完成！
四、Docker啟動Spring-boot
進入 module 執行：
$ mvn package docker:build
[INFO] Scanning for projects...
...
---> Running in e1f8aba72bdf
Removing intermediate container e1f8aba72bdf
---> 36a61c09f09a
ProgressMessage{id=null, status=null, stream=null, error=null, progress=null, progressDetail=null}
Successfully built 36a61c09f09a
Successfully tagged springboot/spring-docker:latest
[INFO] Built springboot/spring-docker
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 6.367 s
[INFO] Finished at: 2018-12-17T20:48:21+08:00
[INFO] ------------------------------------------------------------------------
查看鏡像
$ docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
springboot/spring-docker latest 36a61c09f09a 2 minutes ago 123MB
運行鏡像
$ docker run -p 9090:9090 -t springboot/spring-docker
. ____ _ __ _ _
/\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
\\/ ___)| |_)| | | | | || (_| | ) ) ) )
' |____| .__|_| |_|_| |_\__, | / / / /
=========|_|==============|___/=/_/_/_/
:: Spring Boot :: (v2.0.2.RELEASE)
2018-12-17 12:53:21.502 INFO 1 --- [ main] pers.study.docker.DockerApplication : Starting DockerApplication v1.0-SNAPSHOT on 94991c04be5d with PID 1 (/app.jar started by root in /)
2018-12-17 12:53:21.509 INFO 1 --- [ main] pers.study.docker.DockerApplication : No active profile set, falling back to default profiles: default
···
2018-12-17 12:53:25.255 INFO 1 --- [ main] o.s.j.e.a.AnnotationMBeanExporter : Registering beans for JMX exposure on startup
2018-12-17 12:53:25.337 INFO 1 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 9090 (http) with context path ''
2018-12-17 12:53:25.353 INFO 1 --- [ main] pers.study.docker.DockerApplication : Started DockerApplication in 4.485 seconds (JVM running for 5.346)
查看容器
$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
94991c04be5d springboot/spring-docker "java -Djava.securit…" 53 seconds ago Up 52 seconds 0.0.0.0:9090->9090/tcp quizzical_bhabha
驗證啟動，訪問API
$ curl -XGET 'http://localhost:9090/api/docker/hello'
hello docker
至此Docker部署spring-boot搭建完成。
五、移除鏡像
停止容器
$ docker stop 94991c04be5d
94991c04be5d
刪除容器
$ docker rm 94991c04be5d
94991c04be5d
刪除鏡像
$ docker image rm springboot/spring-docker
Untagged: springboot/spring-docker:latest
Deleted: sha256:36a61c09f09ab88cfe5a05f564deb57498682f4a6f3ec01d2a8c4fdc80ac1e41
Deleted: sha256:3f9aef70be6d4d43c205454d8874f10bc2f7280f70eb88cd1f04937b7965dd27
Deleted: sha256:9a5800e93615bb4c5128bb36d31ec494327c01f1a9a768c1ff538badf76628b9
Deleted: sha256:d9c66f907448fa9e61fd5f9267d7fcf8e1f4b52d0a20466414f2f45777261284
六、其他配置功能
添加環境屬性
$ docker run -e "SPRING_PROFILES_ACTIVE=prod" -p 9090:9090 -t springbooot/spring-docker
后臺啟動運行
$ docker run -p 9090:9090 -d springboot/spring-docker
開啟容器Debug 修改 Dockerfile
FROM openjdk:8-jdk-alpine
VOLUME /tmp
ADD spring-docker.jar app.jar
ENV JAVA_OPTS ''
CMD java -Djava.security.egd=file:/dev/./urandom $JAVA_OPTS -jar app.jar
docker run
復制代碼 代碼如下:
$ docker run -e "JAVA_OPTS=-agentlib:jdwp=transport=dt_socket,address=5005,server=y,suspend=n" -p 9090:9090 -p 5005:5005 -t springboot/spring-docker
