import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# 設置 可視化風格
plt.style.use('tableau-colorblind10')

# 以下代碼從全局設置字體為SimHei（黑體），解決顯示中文問題【W(wǎng)indows】
plt.rcParams['font.sans-serif'] = ['SimHei']

# 解決中文字體下坐標軸負數的負號顯示問題
plt.rcParams['axes.unicode_minus'] = False

# 隨機種子
np.random.seed(1)

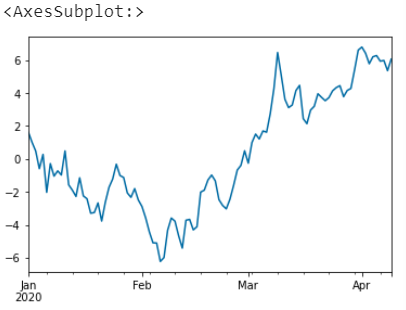

ts = pd.Series(np.random.randn(100), index=pd.date_range("1/1/2020", periods=100))
ts = ts.cumsum()

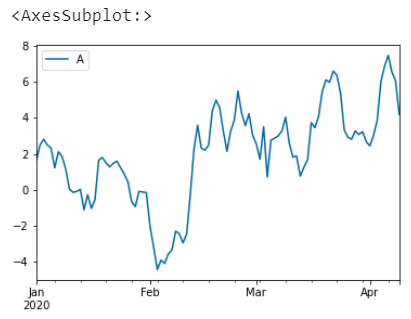

ts.plot()

# 隨機種子
np.random.seed(1)
df = pd.DataFrame(np.random.randn(100, 4), index=ts.index, columns=list("ABCD"))
df = df.cumsum()
df.head()

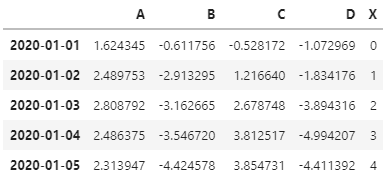

df["X"] = list(range(len(df)))
df.head()

# 指定多個Y
df.plot(x='X',y=['B','C'])

np.random.seed(1)
df = pd.DataFrame(np.random.rand(10, 3), columns=["a", "b", "c"])
df.head()

# 圖像大小
df.plot.bar(figsize=(10,5))

plt.rcParams['figure.figsize'] = (10,5)

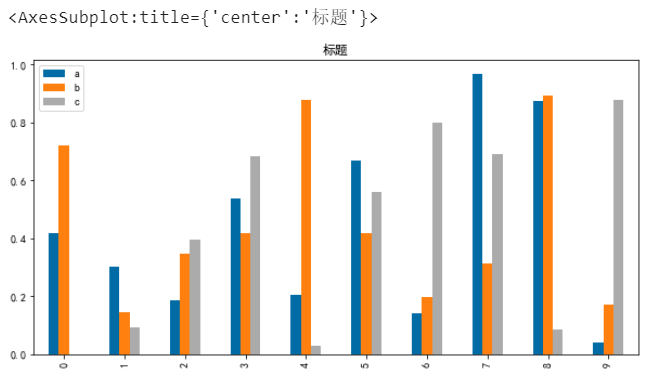

# 標題
df.plot.bar(title='標題',)

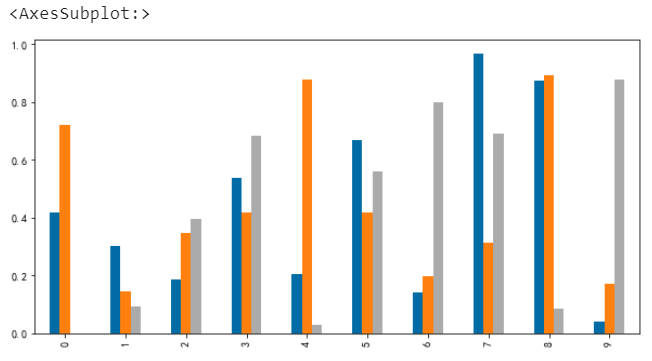

# 圖例不顯示
df.plot.bar(legend=False)

# 圖例倒序
df.plot.bar(legend='reverse')

# x軸標簽旋轉角度
df.plot.bar(rot=0)

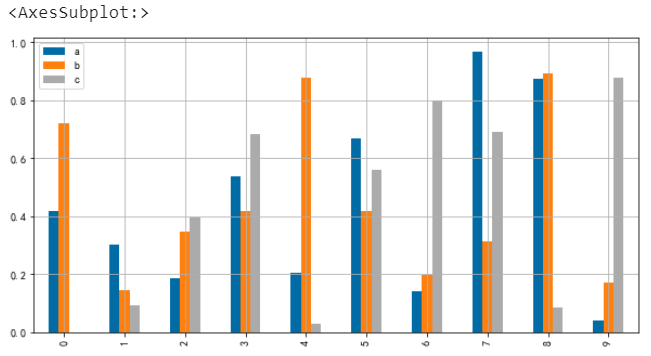

# 網格線
df.plot.bar(grid=True)

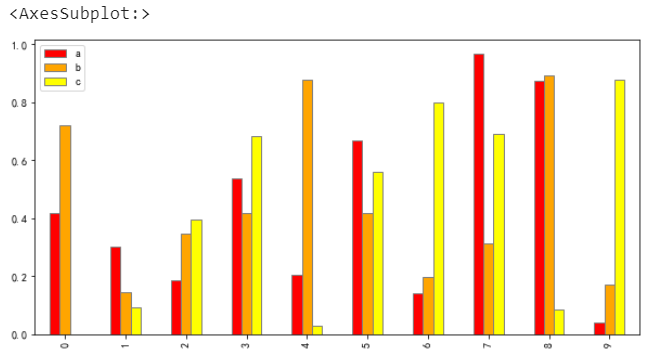

# 指定顏色
df.plot.bar(color=['red','orange','yellow'], edgecolor='grey')

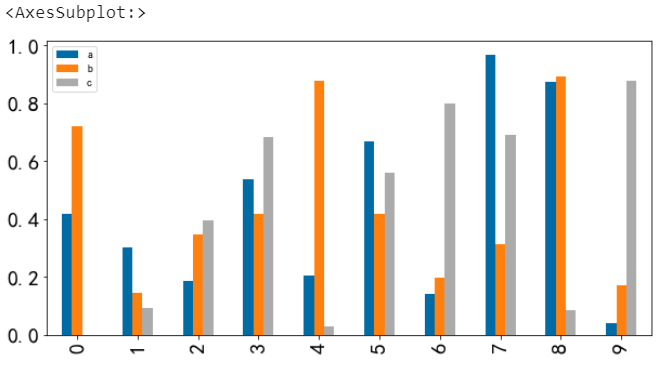

# 字體大小
df.plot.bar(fontsize=20)

df.plot(style = ['.-','--','*-'] # 圓點、虛線、星星
       )

# 指定色系
x = df.plot.bar(colormap='rainbow')

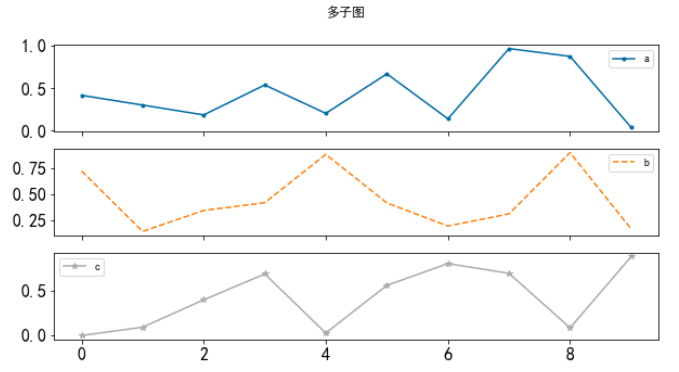

# 多子圖
x = df.plot.line(title ='多子圖',
             fontsize =16,
             subplots =True, # 分列
             style = ['.-','--','*-','^-'] # 圓點、虛線、星星
            )

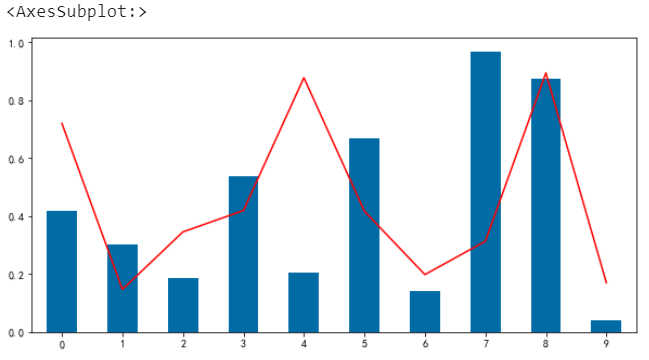

df.a.plot.bar()
df.b.plot(color='r')

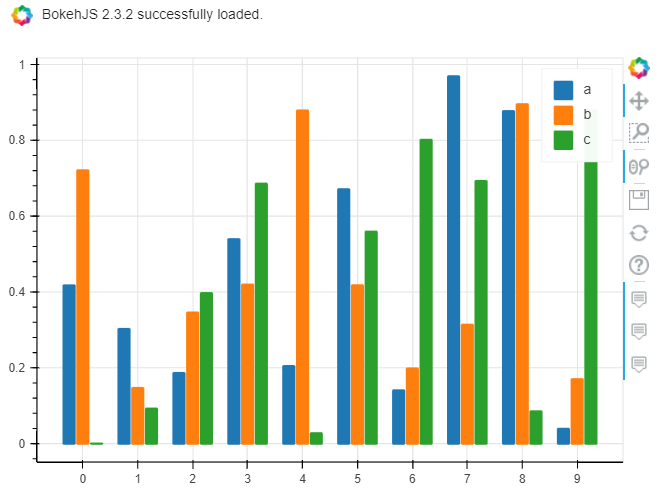

# 繪圖引擎
import pandas_bokeh

pandas_bokeh.output_notebook()
df.plot.bar(backend='pandas_bokeh')

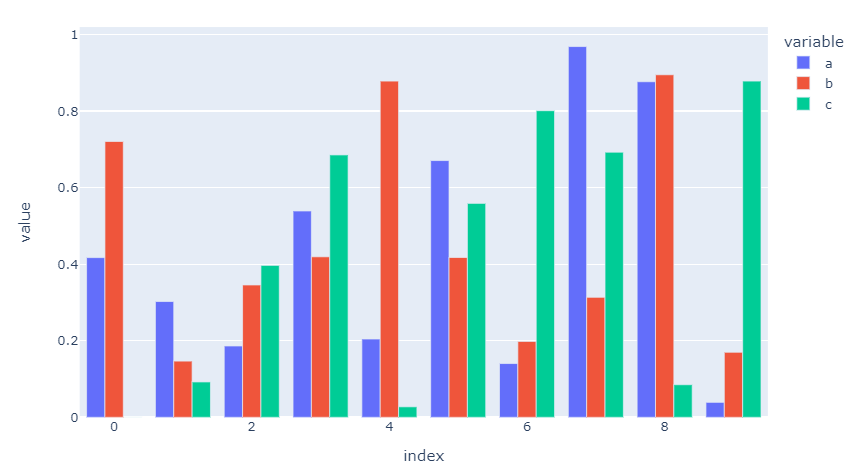

# 繪圖引擎 plotly
df.plot.bar(backend='plotly',
            barmode='group',
            height=500, # 圖表高度
            width=800, # 圖表寬度
           )

# 柱狀圖bar

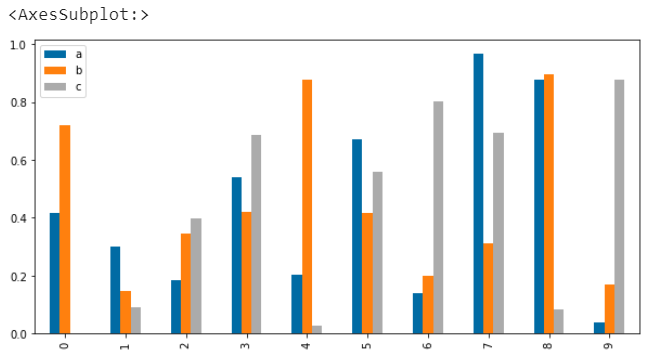

df.plot.bar()

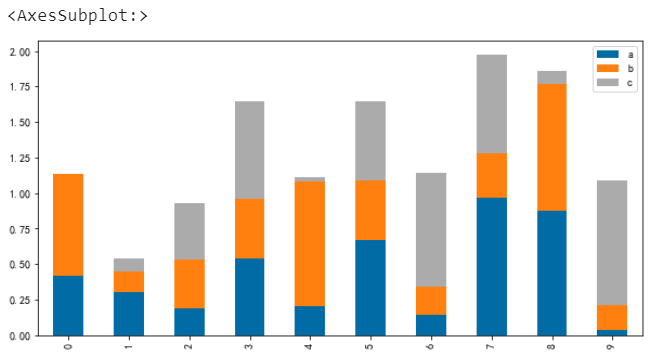

# 堆疊柱狀圖
df.plot.bar(stacked=True)

# 柱狀圖多子圖
df.plot.bar(subplots=True, rot=0)

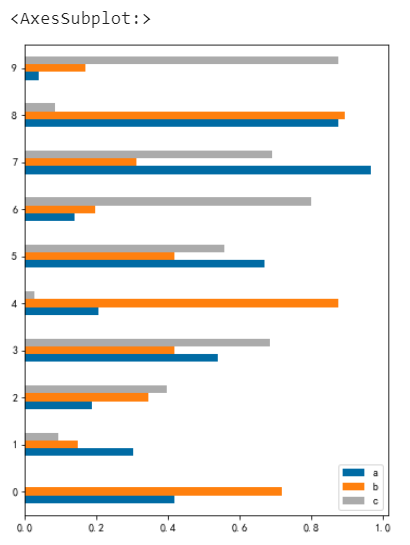

# 條形圖barh
df.plot.barh(figsize=(6,8))

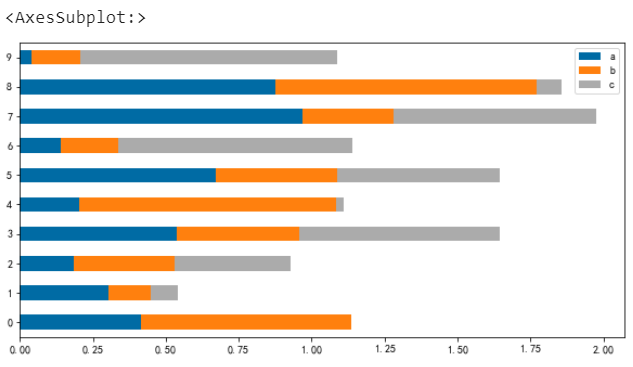

# 堆疊條形圖
df.plot.barh(stacked=True)

# 直方圖
np.random.seed(1)
df = pd.DataFrame(
    {
        "a": np.random.randn(1000) + 1,
        "b": np.random.randn(1000),
        "c": np.random.randn(1000) - 1,
    },
     columns=["a", "b", "c"],
)
df.head()

df.plot.hist(alpha=0.5) # alpha設置透明度

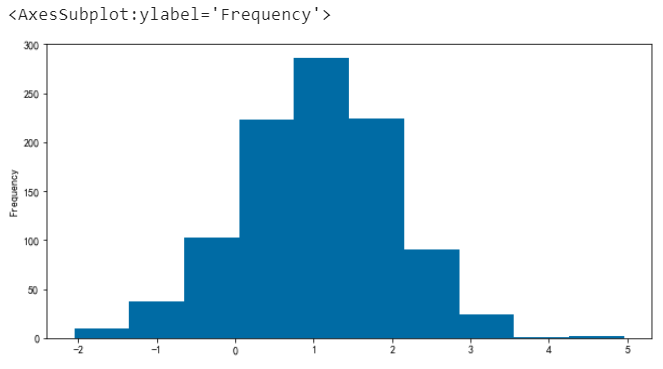

# 單直方圖
df.a.plot.hist()

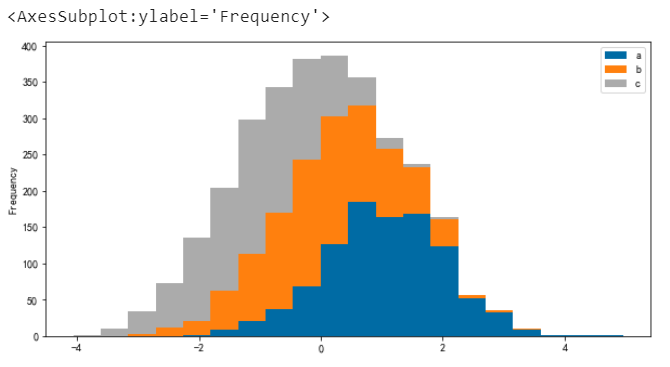

# 堆疊并指定分箱數（默認為 10）
df.plot.hist(stacked=True, bins=20)

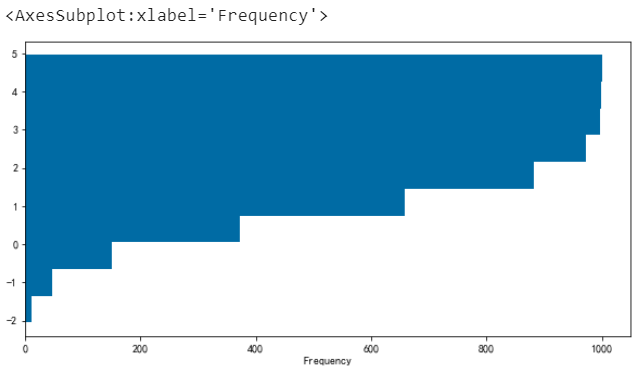

# 可以通過orientation='horizontal'和 cumulative=True 繪制橫向和累積直方圖
df["a"].plot.hist(orientation="horizontal", cumulative=True)

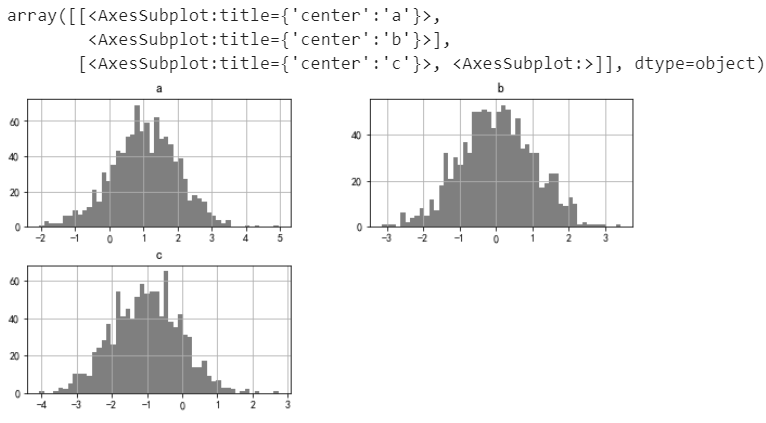

# 繪制多子圖
df.hist(color="k", alpha=0.5, bins=50)

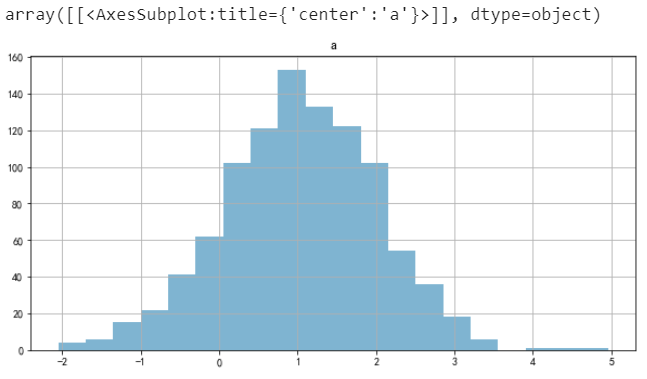

# 以下2種方式效果一致
df.hist('a', bins = 20, alpha=0.5)
# df.a.hist(bins = 20, alpha=0.5)

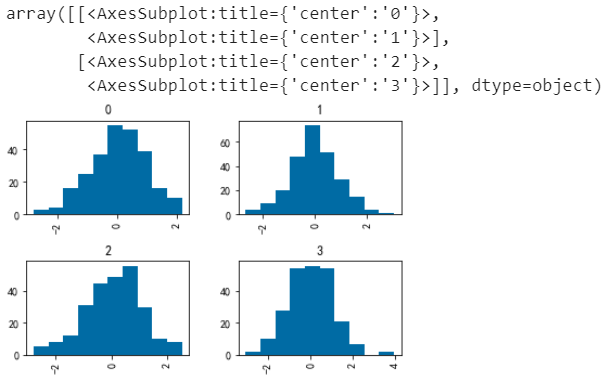

# by 分組
np.random.seed(1)
data = pd.Series(np.random.randn(1000))
data.hist(by=np.random.randint(0, 4, 1000), figsize=(6, 4))

np.random.seed(1)

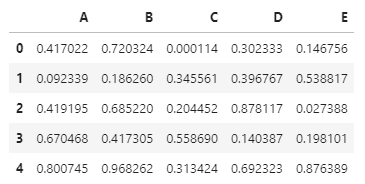

df = pd.DataFrame(np.random.rand(10, 5), columns=["A", "B", "C", "D", "E"])
df.head()

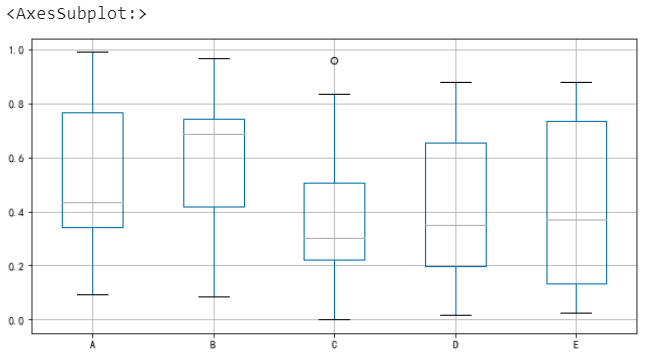

df.boxplot()

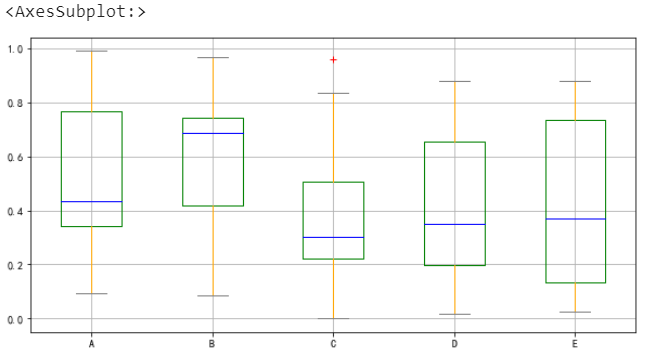

# 指定元素顏色
color = {
  "boxes": "Green", # 箱體顏色
  "whiskers": "Orange", # 連線顏色
  "medians": "Blue", # 中位數顏色
  "caps": "Gray", # 極值顏色
}

df.boxplot(color=color, sym="r+")

df.boxplot(vert=False, positions=[1, 4, 5, 6, 8])

np.random.seed(1)
df = pd.DataFrame(np.random.rand(10, 4), columns=["a", "b", "c", "d"])
df.head()

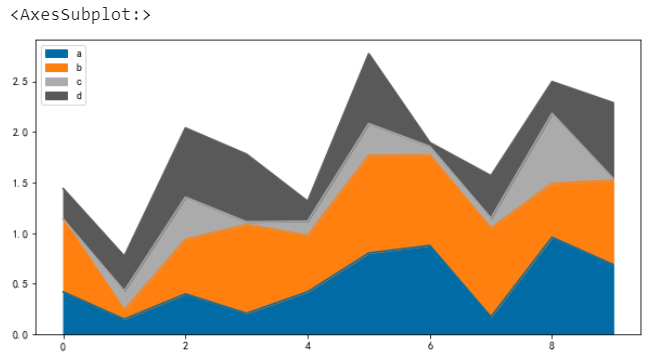

# 默認是堆疊
df.plot.area()

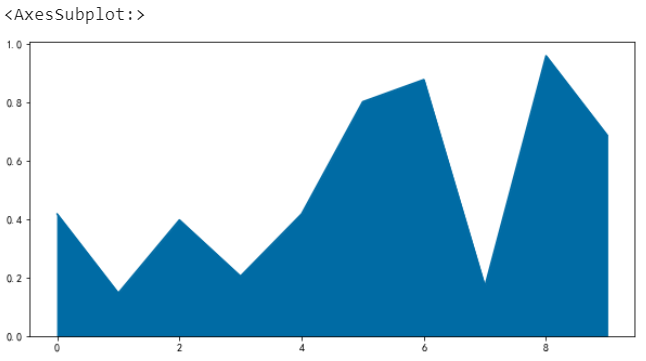

df.a.plot.area()

# 取消堆疊

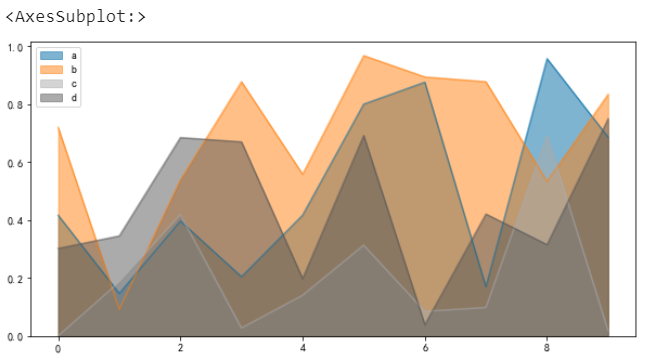

df.plot.area(stacked=False)

np.random.seed(1)
df = pd.DataFrame(np.random.rand(50, 4), columns=["a", "b", "c", "d"])

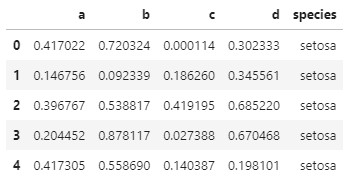

df["species"] = pd.Categorical(
  ["setosa"] * 20 + ["versicolor"] * 20 + ["virginica"] * 10
)

df.head()

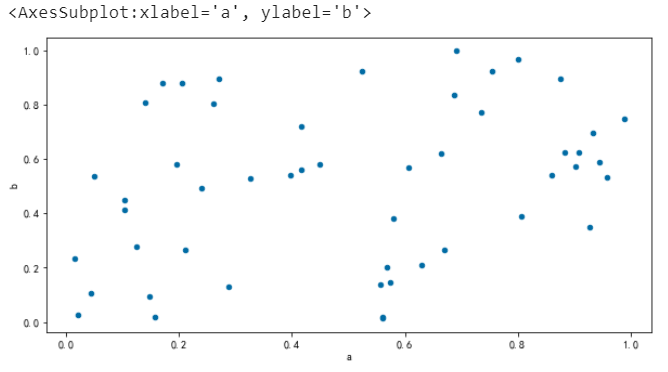

df.plot.scatter(x="a", y="b")

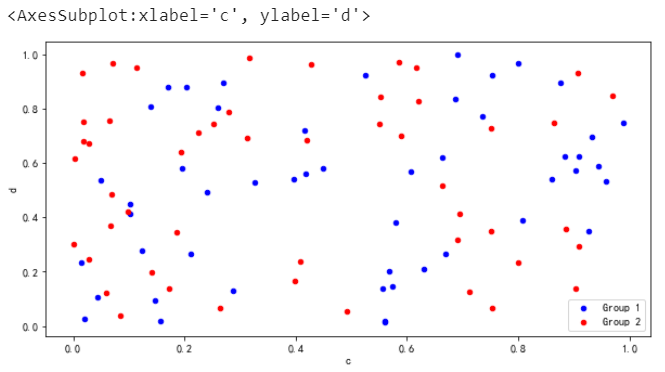

ax = df.plot.scatter(x="a", y="b", color="Blue", label="Group 1")
df.plot.scatter(x="c", y="d", color="red", label="Group 2", ax=ax)

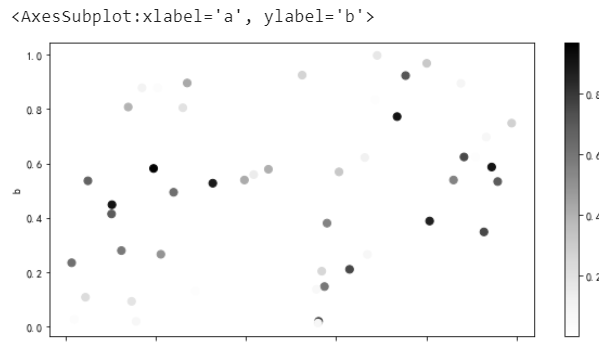

df.plot.scatter(x="a", y="b", c="c", s=50) # 參數s代表散點大小

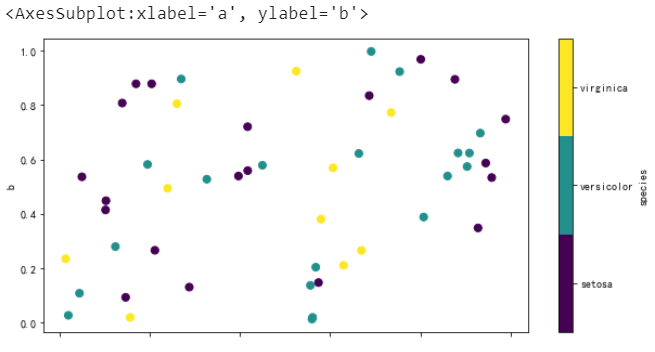

df.plot.scatter(x="a", y="b", c="species", cmap="viridis", s=50)

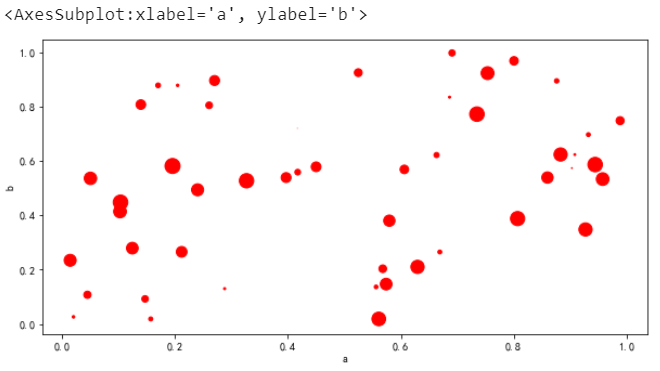

df.plot.scatter(x="a", y="b", color="red", s=df["c"] * 200)

np.random.seed(8)

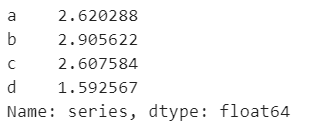

series = pd.Series(3 * np.random.rand(4), index=["a", "b", "c", "d"], name="series")
series

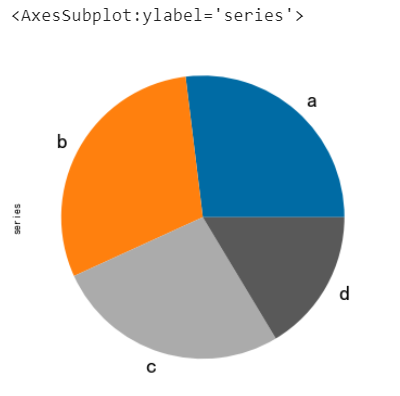

series.plot.pie(figsize=(6, 6), fontsize=20)

np.random.seed(8)
df = pd.DataFrame(
     3 * np.random.rand(4, 2), index=["a", "b", "c", "d"], columns=["x", "y"]
 )
df

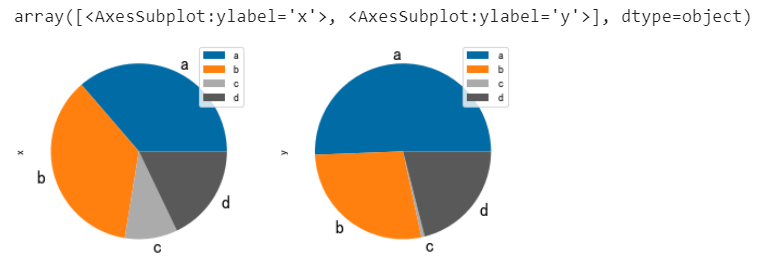

df.plot.pie(subplots=True, figsize=(8, 4), fontsize=16)

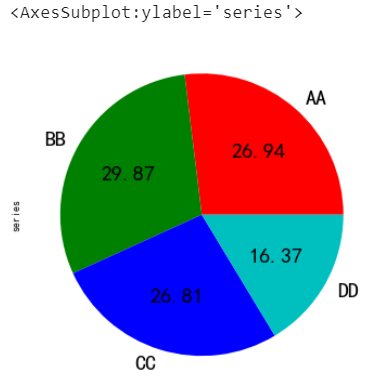

series.plot.pie(
     labels=["AA", "BB", "CC", "DD"], # 標簽
     colors=["r", "g", "b", "c"], # 指定顏色
     autopct="%.2f", # 數字格式（百分比）
     fontsize=20,
     figsize=(6, 6),
 )

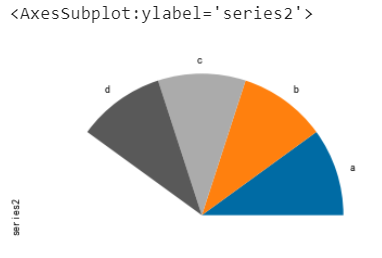

series = pd.Series([0.1] * 4, index=["a", "b", "c", "d"], name="series2")
series.plot.pie(figsize=(6, 6), normalize=False)

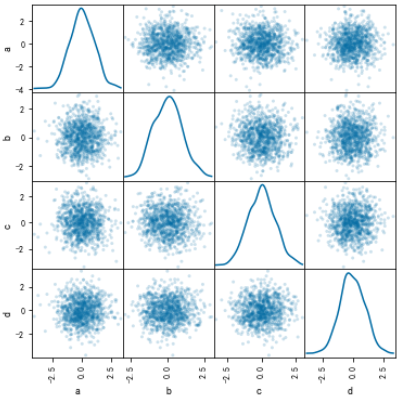

from pandas.plotting import scatter_matrix

df = pd.DataFrame(np.random.randn(1000, 4), columns=["a", "b", "c", "d"])
scatter_matrix(df, alpha=0.2, figsize=(6, 6), diagonal="kde")

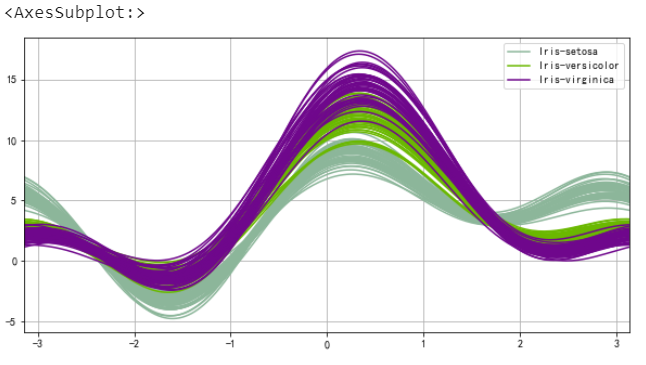

from pandas.plotting import andrews_curves

data = pd.read_csv("iris.csv")
andrews_curves(data, "Name")
