<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0, user-scalable=no">
<title>手勢解鎖</title>
<style type="text/css">
body{
text-align: center;
background: #305066;
}
h4{
color: #22C3AA;
}
</style>
</head>
<body>
<script type="text/javascript" src="src/index.js"></script>
<script type="text/javascript">
// 1、生成背景
// 2、title生成
// 3、用js動態生成canvas標簽
// 4、js方式動態生成h4標簽和canvas標簽
new canvasLock({chooseType:3}).init();
</script>
</body>
</html>
(function(){
/**
* 實現畫圓和劃線：
* 1、添加事件touchstart、touchmove、touchend
* 2、touchstart判斷是否點擊的位置處于圓內getPosition，處于則初始化
* lastpoint、restPoint
* 3、touchmove做的就是：畫圓drawPoint和畫線drawLine
*
* 實現自動畫圓的效果
* 1、檢測手勢移動的位置是否處于圓內
* 2、圓內的話則畫圓 drawPoint
* 3、已經畫過實心圓的圓，無需重復檢測
*
* 實現解鎖成功：
* 1、檢測路徑是否是對的
* 2、如果是對的就重置，圓圈變綠
* 3、不對也重置，圓圈變紅
* 4、重置
*/
window.canvasLock = function(obj){
this.height = obj.height;
this.width = obj.width;
this.chooseType = obj.chooseType;
};
// js方式動態生成dom
canvasLock.prototype.initDom = function(){
var wrap = document.createElement('div');
var str = '<h4 id="title" class="title">繪制解鎖圖案</h4>';
wrap.setAttribute('style','position: absolute;top:0;left:0;right:0;bottom:0;');
var canvas = document.createElement('canvas');
canvas.setAttribute('id','canvas');
canvas.style.cssText = 'background-color: #305066;display: inline-block;margin-top: 15px;';
wrap.innerHTML = str;
wrap.appendChild(canvas);
var width = this.width || 300;
var height = this.height || 300;
document.body.appendChild(wrap);
// 高清屏鎖放
canvas.style.width = width + "px";
canvas.style.height = height + "px";
canvas.width = width;
canvas.height = height;
}
canvasLock.prototype.drawCle = function(x, y) { // 初始化解鎖密碼面板
this.ctx.strokeStyle = '#CFE6FF';
this.ctx.lineWidth = 2;
this.ctx.beginPath();
this.ctx.arc(x, y, this.r, 0, Math.PI * 2, true);
this.ctx.closePath();
this.ctx.stroke();
}
canvasLock.prototype.createCircle = function() {// 創建解鎖點的坐標，根據canvas的大小來平均分配半徑
var n = this.chooseType;
var count = 0;
this.r = this.ctx.canvas.width / (2 + 4 * n);// 公式計算
this.lastPoint = [];
this.arr = [];
this.restPoint = [];
var r = this.r;
for (var i = 0 ; i < n ; i++) {
for (var j = 0 ; j < n ; j++) {
count++;
var obj = {
x: j * 4 * r + 3 * r,
y: i * 4 * r + 3 * r,
index: count
};
this.arr.push(obj);
this.restPoint.push(obj);
}
}
this.ctx.clearRect(0, 0, this.ctx.canvas.width, this.ctx.canvas.height);
for (var i = 0 ; i < this.arr.length ; i++) {
// 畫圓函數
this.drawCle(this.arr[i].x, this.arr[i].y);
}
//return arr;
}
// 程序初始化
canvasLock.prototype.init = function() {
this.initDom();
this.canvas = document.getElementById('canvas');
this.ctx = this.canvas.getContext('2d');
this.touchFlag = false;
// 1、確定半徑
// 2、確定每一個圓的中心坐標點
// 3、一行3個圓14個半徑，一行4個圓有18個半徑
this.createCircle();
this.bindEvent();
}
canvasLock.prototype.bindEvent = function(){
var self = this;
this.canvas.addEventListener("touchstart", function (e) {
// 2、touchstart判斷是否點擊的位置處于圓內getPosition，處于則初始化
// * lastpoint、restPoint
// po有x和y，并且是相較于canvas邊距
var po = self.getPosition(e);
console.log(po.x)
// 判斷是否在圓內的原理：多出來的這條 x/y < r 在圓內
for (var i = 0 ; i < self.arr.length ; i++) {
if (Math.abs(po.x - self.arr[i].x) < self.r && Math.abs(po.y - self.arr[i].y) < self.r) {
self.touchFlag = true;
// lastPoint存放的就是選中的圓圈的x/y坐標值
self.lastPoint.push(self.arr[i]);
self.restPoint.splice(i,1);
break;
}
}
}, false);
this.canvas.addEventListener("touchmove", function (e) {
// touchmove做的就是：畫圓drawPoint和劃線drawLine
if (self.touchFlag) {
self.update(self.getPosition(e));
}
}, false);
this.canvas.addEventListener("touchend", function(e){
if (self.touchFlag) {
self.storePass(self.lastPoint);
setTimeout(function(){
self.reset();
}, 300);
}
}, false);
}
canvasLock.prototype.getPosition = function(e) {// 獲取touch點相對于canvas的坐標
var rect = e.currentTarget.getBoundingClientRect();
var po = {
x: (e.touches[0].clientX - rect.left),
y: (e.touches[0].clientY - rect.top)
};
return po;
}
canvasLock.prototype.update = function(po) {// 核心變換方法在touchmove時候調用
this.ctx.clearRect(0, 0, this.ctx.canvas.width, this.ctx.canvas.height);
// 重新畫9個圓圈
for (var i = 0 ; i < this.arr.length ; i++) { // 每幀先把面板畫出來
this.drawCle(this.arr[i].x, this.arr[i].y);
}
this.drawPoint();// 畫圓
this.drawLine(po);// 畫線
// 1、檢測手勢移動的位置是否處于下一個圓內
// 2、圓內的話則畫圓 drawPoint
// 3、已經畫過實心圓的圓，無需重復檢測
for (var i = 0 ; i < this.restPoint.length ; i++) {
if (Math.abs(po.x - this.restPoint[i].x) < this.r && Math.abs(po.y - this.restPoint[i].y) < this.r) {
this.drawPoint();
this.lastPoint.push(this.restPoint[i]);
this.restPoint.splice(i, 1);
break;
}
}
console.log(this.lastPoint)
}
canvasLock.prototype.drawLine = function(po) {// 解鎖軌跡
this.ctx.beginPath();
this.ctx.lineWidth = 3;
this.ctx.moveTo(this.lastPoint[0].x, this.lastPoint[0].y);
for (var i = 1 ; i < this.lastPoint.length ; i++) {
this.ctx.lineTo(this.lastPoint[i].x, this.lastPoint[i].y);
}
this.ctx.lineTo(po.x, po.y);
this.ctx.stroke();
this.ctx.closePath();
}
canvasLock.prototype.drawPoint = function() { // 初始化圓心
for (var i = 0 ; i < this.lastPoint.length ; i++) {
this.ctx.fillStyle = '#CFE6FF';
this.ctx.beginPath();
this.ctx.arc(this.lastPoint[i].x, this.lastPoint[i].y, this.r / 2, 0, Math.PI * 2, true);
this.ctx.closePath();
this.ctx.fill();
}
}
// 1、檢測路徑是否是對的
// 2、如果是對的就重置，圓圈變綠
// 3、不對也重置，圓圈變紅
// 4、重置
canvasLock.prototype.storePass = function() {
if (this.checkPass()) {

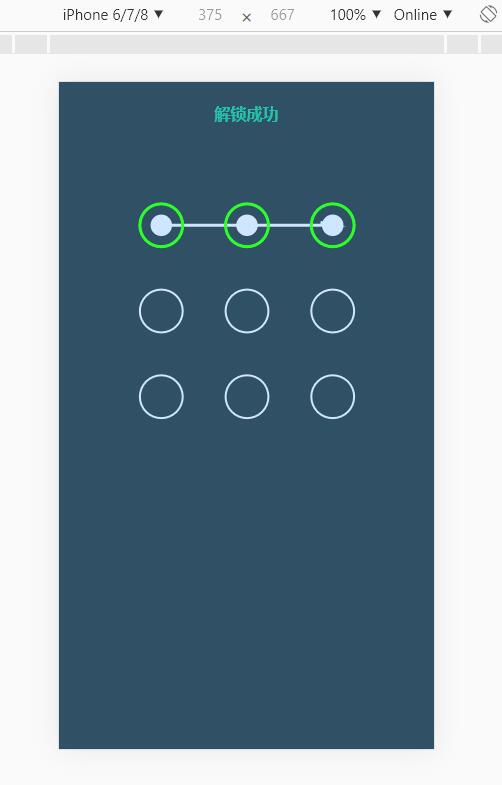

document.getElementById('title').innerHTML = '解鎖成功';
this.drawStatusPoint('#2CFF26');
}else{

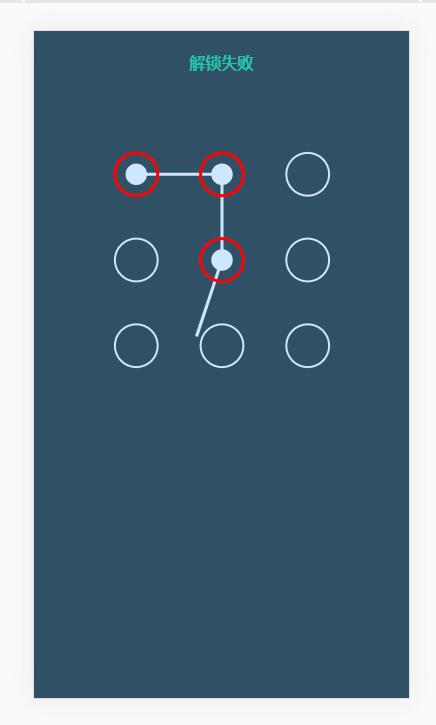

document.getElementById('title').innerHTML = '解鎖失敗';
this.drawStatusPoint('red');
}
}
canvasLock.prototype.checkPass = function() {
var p1 = '123',
p2 = '';
for (var i = 0 ; i < this.lastPoint.length ; i++) {
p2 += this.lastPoint[i].index;
}
return p1 === p2;
}
canvasLock.prototype.drawStatusPoint = function(type) {
for (var i = 0 ; i < this.lastPoint.length ; i++) {
this.ctx.strokeStyle = type;
this.ctx.beginPath();
this.ctx.arc(this.lastPoint[i].x, this.lastPoint[i].y, this.r, 0, Math.PI * 2, true);
this.ctx.closePath();
this.ctx.stroke();
}
}
canvasLock.prototype.reset = function(){
this.createCircle();
}
})();
以上所述是小編給大家介紹的html5 canvas手勢解鎖源碼分享，希望對大家有所幫助，如果大家有任何疑問請給我留言，小編會及時回復大家的。在此也非常感謝大家對腳本之家網站的支持！
