# -*- coding:utf-8 -*-
import cv2
import numpy as np

cv2.namedWindow('img', 0)


def traversePixelByCycloidLine(image):
 """
 從一副灰度圖像的中心開始向邊緣按回形線的方式遍歷所有像素，每個像素只能訪問一次。
 我目前實現了基本的算法, 但存在以下問題:
 1) 只支持方陣, 且行列為奇數
 2) 只實現, 代碼沒整理
 """

 h, w = image.shape[:2]

 assert h == w and h % 2 == 1, '只支持方陣, 且行列為奇數'

 center_x, center_y = [w // 2, h // 2]

 traverse_num = h * w

 cycloid_num = 0
 value = 1
 while True:

  for i in range(cycloid_num * 2 + 1):
   if value >= traverse_num:
    return image
   center_x = center_x + 1
   image[center_y, center_x] = 255
   value += 1

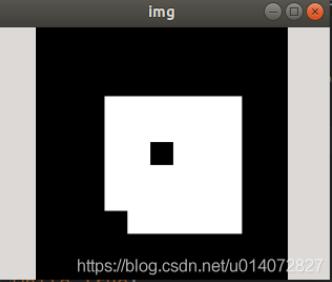

   cv2.imshow('img', image)
   cv2.waitKey(33)

  for i in range(cycloid_num * 2 + 1):
   if value >= traverse_num:
    return image
   center_y = center_y + 1
   image[center_y, center_x] = 255
   value += 1
   cv2.imshow('img', image)
   cv2.waitKey(33)

  for i in range(cycloid_num * 2 + 2):
   if value >= traverse_num:
    return image
   center_x = center_x - 1
   image[center_y, center_x] = 255
   value += 1
   cv2.imshow('img', image)
   cv2.waitKey(33)

  for i in range(cycloid_num * 2 + 2):
   if value >= traverse_num:
    return image
   center_y = center_y - 1
   image[center_y, center_x] = 255
   value += 1
   cv2.imshow('img', image)
   cv2.waitKey(33)
  cycloid_num += 1


image_wh = 11

while True:
 image = np.zeros((image_wh, image_wh, 3), dtype=np.uint8)
 traversePixelByCycloidLine(image)
