Docker+keepalived+nginx實現主從熱備的方法示例

前言

為解決單點故障，我們需要配置主從熱備方案，服務器數量有限，故使用Docker模擬安裝配置。

本次配置默認已經安裝了Docker。

配置環境:centos7 64位

docker版本:Docker version 17.12.1-ce, build 7390fc6

1，拉取centos7鏡像

docker pull centos:7

2,創建容器

docker run -it -d --name centos1 -d centos:7

3,進入容器centos1

docker exec -it centos1 bash

4,安裝常用工具

yum updateyum install -y vimyum install -y wgetyum install -y gcc-c++ yum install -y pcre pcre-devel yum install -y zlib zlib-devel yum install -y openssl openssl--develyum install -y popt-develyum install -y initscripts
yum install -y net-tools

5，將容器打包成新的鏡像，以后直接以該鏡像創建容器

docker commit -a 'cfh' -m 'centos with common tools' centos1 centos_base

6,刪除之前創建的centos1 容器，重新以基礎鏡像創建容器，安裝keepalived+nginx

docker rm -f centos1
#容器內需要使用systemctl服務，需要加上/usr/sbin/init
docker run -it --name centos_temp -d --privileged centos_base /usr/sbin/init
docker exec -it centos_temp bash

作者：江湖救急
鏈接：https://juejin.im/post/5dc517386fb9a04a9272110b
來源：掘金
著作權歸作者所有。商業轉載請聯系作者獲得授權，非商業轉載請注明出處。

7,安裝nginx

#使用yum安裝nginx需要包括Nginx的庫，安裝Nginx的庫
rpm -Uvh http://nginx.org/packages/centos/7/noarch/RPMS/nginx-release-centos-7-0.el7.ngx.noarch.rpm
# 使用下面命令安裝nginx
yum install -y nginx
#啟動nginx
systemctl start nginx.service
#查看是否啟動成功,出現nginx歡迎界面表示安裝成功
curl 172.17.0.2

8,安裝keepalived

1.下載keepalived wget http://www.keepalived.org/software/keepalived-1.2.18.tar.gz

2.解壓安裝：tar -zxvf keepalived-1.2.18.tar.gz -C /usr/local/

3.下載插件openssl yum install -y openssl openssl-devel（需要安裝一個軟件包）

4.開始編譯keepalivedcd /usr/local/keepalived-1.2.18/ && ./configure --prefix=/usr/local/keepalived

5.make一下 make && make install

9,將keepalived 安裝成系統服務

mkdir /etc/keepalivedcp /usr/local/keepalived/etc/keepalived/keepalived.conf /etc/keepalived/然后復制keepalived腳本文件：cp /usr/local/keepalived/etc/rc.d/init.d/keepalived /etc/init.d/cp /usr/local/keepalived/etc/sysconfig/keepalived /etc/sysconfig/ln -s /usr/local/sbin/keepalived /usr/sbin/可以設置開機啟動：chkconfig keepalived on，到此我們安裝完畢!

#若啟動報錯，則執行下面命令
cd /usr/sbin/
rm -f keepalived
cp /usr/local/keepalived/sbin/keepalived /usr/sbin/

#常用命令
systemctl daemon-reload 重新加載systemctl enable keepalived.service 設置開機自動啟動systemctl disable keepalived.service 取消開機自動啟動systemctl start keepalived.service 啟動systemctl stop keepalived.service停止systemctl status keepalived.service 查看服務狀態

10,修改/etc/keepalived/keepalived.conf文件

#備份配置文件
cp /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf.backup

rm -f keepalived.conf
vim keepalived.conf
#配置文件如下

vrrp_script chk_nginx {
  script "/etc/keepalived/nginx_check.sh"
  interval 2
  weight -20
}

vrrp_instance VI_1 {
  state MASTER
  interface eth0
  virtual_router_id 121
  mcast_src_ip 172.17.0.6
  priority 100
  nopreempt
  advert_int 1
  authentication {
    auth_type PASS
    auth_pass 1111
  }

  track_script {
    chk_nginx
  }

  virtual_ipaddress {
    172.17.0.100
  }
}

11,添加心跳檢測文件

vim nginx_check.sh
#以下是腳本內容
#!/bin/bash
A=`ps -C nginx –no-header |wc -l`
if [ $A -eq 0 ];then
  /usr/local/nginx/sbin/nginx
  sleep 2
  if [ `ps -C nginx --no-header |wc -l` -eq 0 ];then
    killall keepalived
  fi
fi

12,給腳本賦予執行權限

chmod +x nginx_check.sh

13,設置開機啟動

systemctl enable keepalived.service

#開啟keepalived
systemctl start keepalived.service

14,檢測虛擬IP是否成功,在宿主機里面執行下面命令，如果出現nginx歡迎界面表示成功

curl 172.17.0.100

15，將centos_temp 容器重新打包成鏡像，然后利用這個新鏡像再創建兩個容器，實現熱備效果

docker commit -a 'cfh' -m 'centos with keepalived nginx' centos_temp centos_kn

16,刪除所有容器

docker rm -f `docker ps -a -q`

17，用centos_kn 鏡像創建主服務器容器

docker run --privileged -tid --name centos_master --restart=always centos_kn /usr/sbin/init

docker exec -it centos_master bash

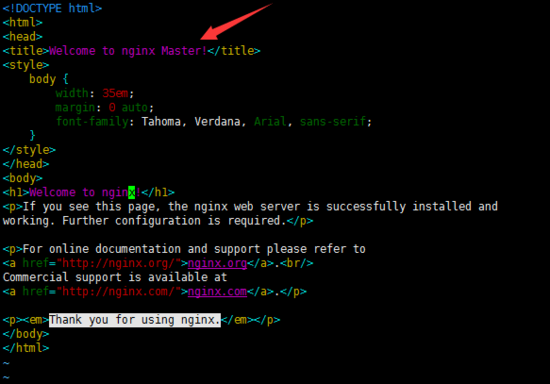

18，修改centos_master里面nginx 歡迎頁,

vim /usr/share/nginx/html/index.html

19,創建從服務器容器

docker run --privileged -tid --name centos_slave --restart=always centos_kn /usr/sbin/init
docker exec -it centos_slave bash

#修改keepalived.conf 配置文件,主要是state和priority兩個參數的調整，其中master節點的priority值一定要比slave大才行

vrrp_script chk_nginx {
  script "/etc/keepalived/nginx_check.sh"
  interval 2
  weight -20
}

vrrp_instance VI_1 {
  state SLAVE
  interface eth0
  virtual_router_id 121
  mcast_src_ip 172.17.0.6
  priority 80
  nopreempt
  advert_int 1
  authentication {
    auth_type PASS
    auth_pass 1111
  }

  track_script {
    chk_nginx
  }

  virtual_ipaddress {
    172.17.0.100
  }
}

20,修改完成之后重新加載

systemctl daemon-reload
systemctl restart keepalived.service

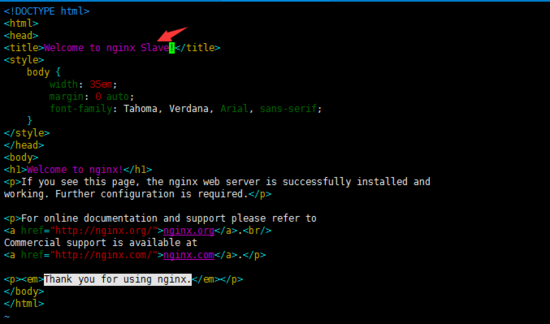

21,修改nginx歡迎頁（若nginx沒啟動則執行 systemctl start nginx.service）

vim /usr/share/nginx/html/index.html

22,測試

A> 分別在宿主機，centos_master,centos_slave中進行一下命令測試,如果顯示都為Master的歡迎頁面，說明配置成功1/3

curl 172.17.0.100

B> 此時停止centos_master容器( docker stop centos_master )，保留centos_slave容器，執行以下命令,若切換到Slave頁面，則說明keepalived配置成功2/3

curl 172.17.0.100

C> 重啟centos_master 容器，此時執行以下命令,看是從Slave切換到了Master,如果切換成功，說明我們配置到此成功了。

curl 172.17.0.100

說明，測試過程中，重啟容器之后，nginx沒有啟動，需要進入容器啟動一下，不然訪問不到Master頁面了，但是可以Ping通。

執行下面命令，配置nginx隨機啟動,這樣不用每次重啟容器還需要手動啟動nginx

chkconfig nginx on

以上就是整個配置過程，希望對大家的學習有所幫助，也希望大家多多支持腳本之家。
