// 繪制圓端矩形（藥丸狀，pill）
void DrawPill(cv::Mat mask, const cv::RotatedRect rotatedrect, const cv::Scalar color, int thickness, int lineType)
{
cv::Mat canvas = cv::Mat::zeros(mask.size(), CV_8UC1);
// 確定短邊，短邊繪制圓形
cv::RotatedRect rect = rotatedrect;
float r = rect.size.height / 2.0f;
if (rect.size.width > rect.size.height) {
rect.size.width -= rect.size.height;
}
else {
rect.size.height -= rect.size.width;
r = rect.size.width / 2.0f;
}
cv::Point2f ps[4];
rect.points(ps);
// 繪制邊緣
std::vectorstd::vectorcv::Point>> tmpContours;
std::vectorcv::Point> contours;
for (int i = 0; i != 4; ++i) {
contours.emplace_back(cv::Point2i(ps[i]));
}
tmpContours.insert(tmpContours.end(), contours);
drawContours(canvas, tmpContours, 0, cv::Scalar(255),5, lineType); // 填充mask
// 計算常長短軸
float a = rotatedrect.size.width;
float b = rotatedrect.size.height;
int point01_x = (int)((ps[0].x + ps[1].x) / 2.0f);
int point01_y = (int)((ps[0].y + ps[1].y) / 2.0f);
int point03_x = (int)((ps[0].x + ps[3].x) / 2.0f);
int point03_y = (int)((ps[0].y + ps[3].y) / 2.0f);
int point12_x = (int)((ps[1].x + ps[2].x) / 2.0f);
int point12_y = (int)((ps[1].y + ps[2].y) / 2.0f);
int point23_x = (int)((ps[2].x + ps[3].x) / 2.0f);
int point23_y = (int)((ps[2].y + ps[3].y) / 2.0f);
cv::Point c0 = a b ? cv::Point(point12_x, point12_y) : cv::Point(point23_x, point23_y);
cv::Point c1 = a b ? cv::Point(point03_x, point03_y) : cv::Point(point01_x, point01_y);
// 長軸兩端以填充的方式畫圓，直徑等于短軸
cv::circle(canvas, c0, (int)r, cv::Scalar(255), 5, lineType);
cv::circle(canvas, c1, (int)r, cv::Scalar(255), 5, lineType);

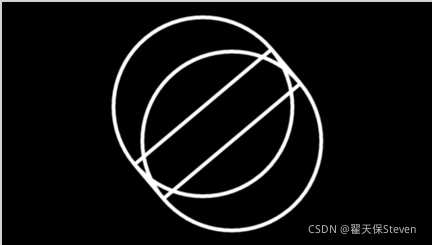

// 繪制外圍輪廓，如果不這樣操作，會得到一個矩形加兩個圓形，丑。。。
std::vectorstd::vectorcv::Point>> EXcontours;
cv::findContours(canvas,EXcontours,cv::RETR_EXTERNAL, CHAIN_APPROX_SIMPLE);
drawContours(mask, EXcontours, 0, color, thickness,lineType); // 填充mask
}
#include iostream>
#include opencv2/opencv.hpp>
using namespace std;
using namespace cv;
void DrawPill(cv::Mat mask, const cv::RotatedRect rotatedrect, const cv::Scalar color, int thickness, int lineType);
int main()
{
cv::Mat src = imread("test.jpg");
cv::Mat result = src.clone();
cv::RotatedRect rorect(cv::Point(src.cols / 2, src.rows / 2), cv::Size(1000, 800), 50);

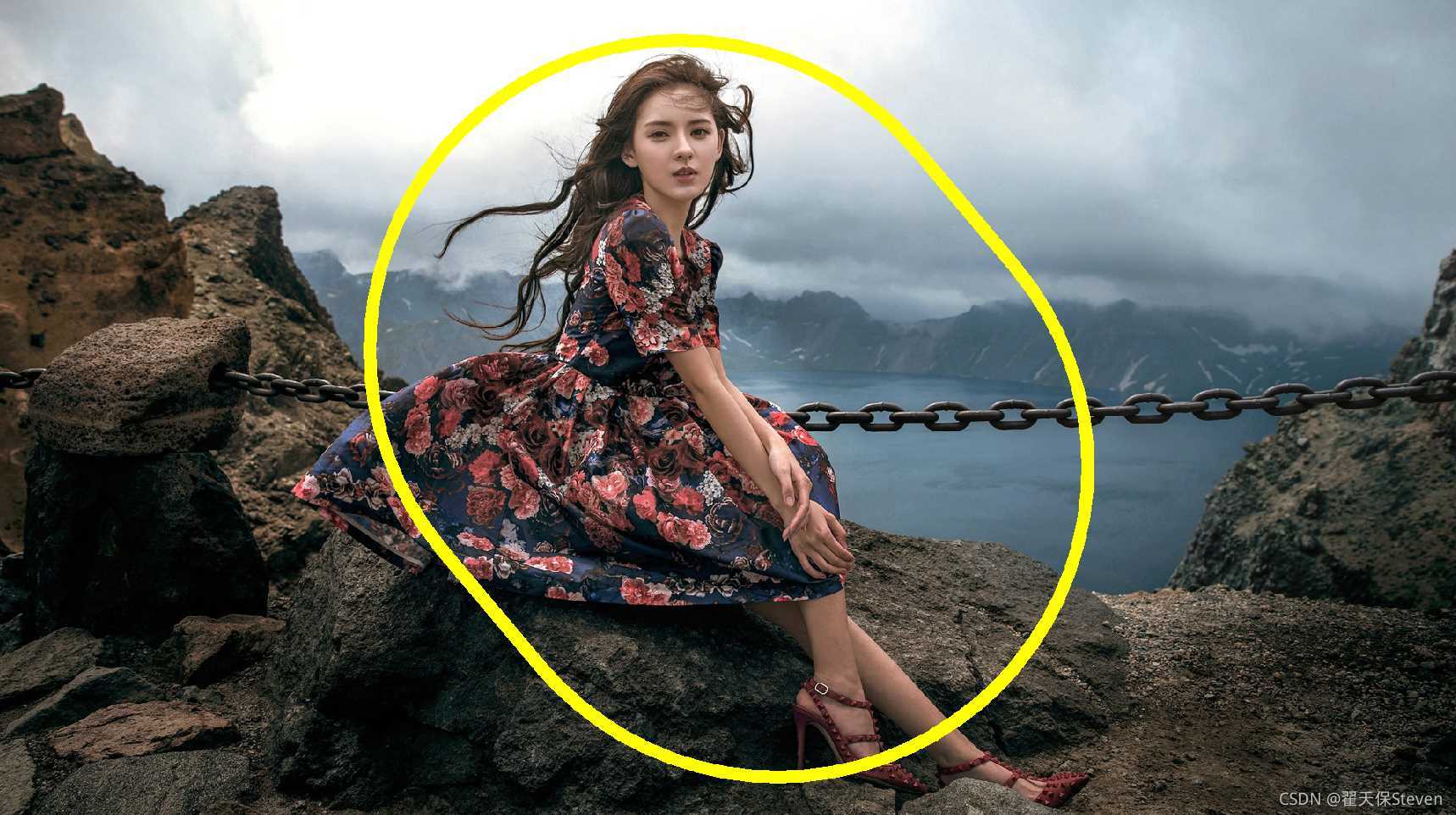

DrawPill(result, rorect, cv::Scalar(0, 255, 255),8,16);
imshow("original", src);
imshow("result", result);
waitKey(0);
return 0;
}
// 繪制圓端矩形（藥丸狀，pill）
void DrawPill(cv::Mat mask, const cv::RotatedRect rotatedrect, const cv::Scalar color, int thickness, int lineType)
{
cv::Mat canvas = cv::Mat::zeros(mask.size(), CV_8UC1);
// 確定短邊，短邊繪制圓形
cv::RotatedRect rect = rotatedrect;
float r = rect.size.height / 2.0f;
if (rect.size.width > rect.size.height) {
rect.size.width -= rect.size.height;
}
else {
rect.size.height -= rect.size.width;
r = rect.size.width / 2.0f;
}
cv::Point2f ps[4];
rect.points(ps);
// 繪制邊緣
std::vectorstd::vectorcv::Point>> tmpContours;
std::vectorcv::Point> contours;
for (int i = 0; i != 4; ++i) {
contours.emplace_back(cv::Point2i(ps[i]));
}
tmpContours.insert(tmpContours.end(), contours);
drawContours(canvas, tmpContours, 0, cv::Scalar(255),5, lineType); // 填充mask
// 計算常長短軸
float a = rotatedrect.size.width;
float b = rotatedrect.size.height;
int point01_x = (int)((ps[0].x + ps[1].x) / 2.0f);
int point01_y = (int)((ps[0].y + ps[1].y) / 2.0f);
int point03_x = (int)((ps[0].x + ps[3].x) / 2.0f);
int point03_y = (int)((ps[0].y + ps[3].y) / 2.0f);
int point12_x = (int)((ps[1].x + ps[2].x) / 2.0f);
int point12_y = (int)((ps[1].y + ps[2].y) / 2.0f);
int point23_x = (int)((ps[2].x + ps[3].x) / 2.0f);
int point23_y = (int)((ps[2].y + ps[3].y) / 2.0f);
cv::Point c0 = a b ? cv::Point(point12_x, point12_y) : cv::Point(point23_x, point23_y);
cv::Point c1 = a b ? cv::Point(point03_x, point03_y) : cv::Point(point01_x, point01_y);
// 長軸兩端以填充的方式畫圓，直徑等于短軸
cv::circle(canvas, c0, (int)r, cv::Scalar(255), 5, lineType);
cv::circle(canvas, c1, (int)r, cv::Scalar(255), 5, lineType);
// 繪制外圍輪廓，如果不這樣操作，會得到一個矩形加兩個圓形，丑。。。
std::vectorstd::vectorcv::Point>> EXcontours;
cv::findContours(canvas,EXcontours,cv::RETR_EXTERNAL, CHAIN_APPROX_SIMPLE);
drawContours(mask, EXcontours, 0, color, thickness,lineType); // 填充mask
}
到此這篇關于OpenCV繪制圓端矩形的示例代碼的文章就介紹到這了,更多相關OpenCV 圓端矩形內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
